TLV1701AIDBVR SOT-23-5 analog comparator has the lowest price
characteristic
Power range:
+2.2V to+36V or ± 1.1V to ± 18V
Low quiescent current:
55 µ A per comparator
The input common mode range includes two power rails
Low propagation delay: 560ns
Low input offset voltage: 300 µ V
Open collector output:
The maximum voltage can be 36V higher than the negative power supply and is not affected by the power supply voltage
Industrial temperature range:
-40 ° C to+125 ° C
Small package:
Single channel: SC70-5, SOT-23-5 and SOT553-5
Dual channel: VSSOP-8, X2QFN-8
Four channels: TSSOP-14
Scope of application
Overvoltage and undervoltage detectors

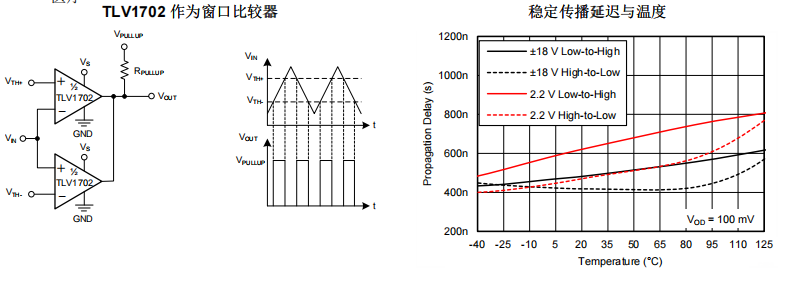

Window Comparator
Over current detector
Zero crossing detector
System monitoring for the following applications:
Power Supply
White goods
Industrial sensors
automobile
medical care
explain
TLV170x series devices provide wide power supply range, rail to rail input, low quiescent current and low propagation delay. All of these features are in line with industry standards, using a very small package, which makes these devices the best universal comparators available on the market today.
Open collector output has the advantage of being able to pull the output to any voltage rail (up to+36V higher than the negative power supply), and is not affected by TLV170x power supply voltage.
These devices are available in single channel (TLV1701), dual channel (TLV1702) and four channel (TLV1704) versions. Low input offset voltage, low input offset current, low power supply current, and open set configuration enable the TLV170x series to flexibly handle most applications from simple voltage detection to driving a single relay.
Power range:
+2.2V to+36V or ± 1.1V to ± 18V
Low quiescent current:
55 µ A per comparator
The input common mode range includes two power rails
Low propagation delay: 560ns
Low input offset voltage: 300 µ V
Open collector output:
The maximum voltage can be 36V higher than the negative power supply and is not affected by the power supply voltage
Industrial temperature range:
-40 ° C to+125 ° C
Small package:
Single channel: SC70-5, SOT-23-5 and SOT553-5
Dual channel: VSSOP-8, X2QFN-8
Four channels: TSSOP-14
Scope of application
Overvoltage and undervoltage detectors
Window Comparator
Over current detector
Zero crossing detector
System monitoring for the following applications:
Power Supply
White goods
Industrial sensors
automobile
medical care
explain
TLV170x series devices provide wide power supply range, rail to rail input, low quiescent current and low propagation delay. All of these features are in line with industry standards, using a very small package, which makes these devices the best universal comparators available on the market today.
Open collector output has the advantage of being able to pull the output to any voltage rail (up to+36V higher than the negative power supply), and is not affected by TLV170x power supply voltage.
These devices are available in single channel (TLV1701), dual channel (TLV1702) and four channel (TLV1704) versions. Low input offset voltage, low input offset current, low power supply current, and open set configuration enable the TLV170x series to flexibly handle most applications from simple voltage detection to driving a single relay.
The rated operating temperature of all devices is within the extended industrial temperature range – 40 ° C to+125 ° C.
