TMS320F28374SPTPT HLQFP-176 Inventory clearing price discount
explain
C2000 ™ The 32-bit microcontroller is optimized for processing, induction and drive to improve closed-loop performance for real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, and induction and signal processing. The C2000 series includes advanced performance MCU and entry-level performance MCU.
TMS320F2837xS is a powerful 32-bit floating point microcontroller unit (MCU) designed for advanced closed-loop control applications such as industrial motor drivers, photovoltaic inverters and digital power supplies, electric vehicles and transportation, as well as induction and signal processing. In order to accelerate application development, Digital Power Software Development Kit (SDK) for C2000 MCU and C2000 are provided ™ MotorControl software development kit for MCU
(SDK)。 The real-time control subsystem is based on TI's 32-bit C28x floating point CPU, providing 200MHz signal processing performance. The performance of the C28x CPU has been further improved through the new TMU accelerator and VCU accelerator. The TMU accelerator can quickly perform the trigonometry algorithms commonly used in transformation and torque loop calculation; VCU accelerator can shorten the time of complex mathematical operations commonly seen in coding applications.
F2837xS microcontroller product series has CLA real-time control coprocessor. CLA is an independent 32-bit floating point processor, which runs at the same speed as the main CPU. This CLA responds to external triggers and executes code simultaneously with the main C28x CPU. This parallel processing function can effectively double the computing performance of the real-time control system. By using CLA to service time critical functions, the main C28x CPU is free to perform other tasks, such as communication and diagnostics.
TMS320F2837xS supports onboard flash memory up to 1MB (512KW) with error correction code (ECC) and SRAM up to 164KB (82KW). There are also two 128 bit security zones on the CPU for code protection.
F2837xS MCU also integrates high-performance simulation and control peripherals to further realize system integration. Four independent 16 bit ADC can accurately and efficiently manage multiple analog signals, thus ultimately improving the system throughput. new type Σ-Δ Filter Module (SDFM) and Σ-Δ Modulators can be used together to realize isolated parallel current measurement. The comparator subsystem with window comparator (CMPSS) allows protection of the power level when current limits are exceeded or not met. Other analog and control peripherals include DAC, PWM, eCAP, eQEP and other peripherals.
The EMIF, CAN module (conforming to ISO 11898-1/CAN 2.0B standard) and other peripherals as well as the new uPP interface expand the F2837xS connectivity.
The uPP interface is C2000 ™ The new function of MCU supports high-speed parallel connection with FPGA or other processors by using similar uPP interfaces. most
The USB 2.0 port with MAC and PHY allows users to easily add Universal Serial Bus (USB) connectivity to their applications.

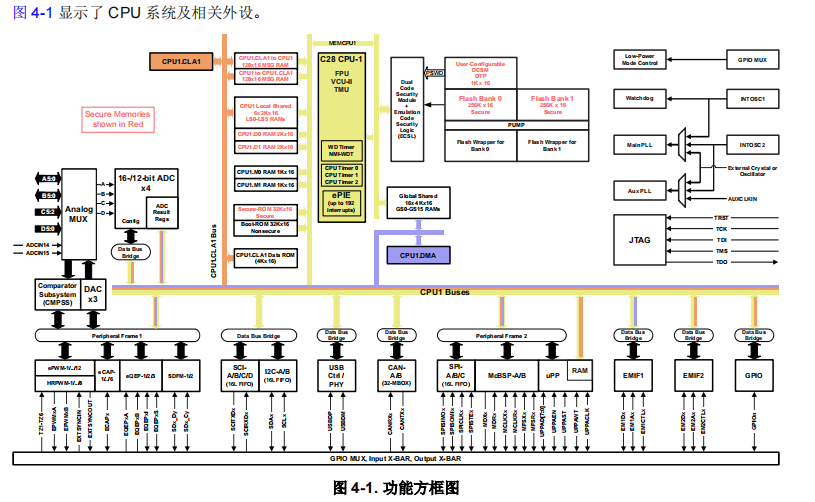

Characteristics
• TMS320C28x 32-bit CPU
– 200MHz
– IEEE 754 Single Precision Floating Point Unit (FPU)
– Trigonometric function accelerator (TMU)
– Viterbi/Complex Math Unit (VCU-II)
• Programmable control law accelerator (CLA)
– 200MHz
– IEEE 754 Single Precision Floating Point Instructions
– Execute code independently of the main CPU
• On chip memory
– 512KB (256KW) or 1MB (512KW) flash memory (ECC protected)
– 132KB (66KW) or 164KB (82KW) RAM
(ECC protection or parity protection)
– Support dual zone security developed by third parties
– Unique identification number
• Clock and system control
– Two internal zero pin 10MHz oscillators
– On chip crystal oscillator
– Window watchdog timer module
– Lost clock detection circuit
• 1.2V core, 3.3V I/O design
• System peripherals
– Two external memory interfaces (EMIF) supporting ASRAM and SDRAM
– 6-channel direct memory access (DMA) controller
– Up to 169 independently programmable
Multiplexing universal input/output (GPIO) pin
– Extended Peripheral Interrupt Controller (ePIE)
– Support multiple low power consumption modes (LPM) with external wake-up function
• Communication peripherals
– USB 2.0 (MAC + PHY)
– Support 12 pin 3.3V compatible universal parallel port (uPP) interface
– Two CAN modules (pin bootable)
– Three high-speed (up to 50MHz) SPI ports (pin bootable)
– Two multichannel buffered serial ports (McBSP)
– Four serial communication interfaces (SCI/UART) (pin bootable)
– Two I2C interfaces (pin bootable)
• Analog subsystem
– Up to four analog-to-digital converters (ADC)
• 16 bit mode
– 1.1 MSPS for each (system throughput up to 4.4 MSPS)
– Differential input
– Up to 12 external channels
• 12 bit mode
– 3.5MSPS each (system throughput up to 14MSPS)
– Single ended input
– Up to 24 external channels
• One sample and hold (S/H) circuit per ADC
• Hardware integrated post-processing of ADC conversion
– Saturation offset voltage calibration
– Error in setpoint calculation
– High level, low level and zero crossing comparison with interrupt function
– Trigger to sampling delay acquisition
– Eight window comparators with 12 bit analog converter (DAC) references
– Three 12 bit buffered DAC outputs
• Enhanced control peripherals
– 24 PWM channels with enhanced characteristics
– 16 high-resolution pulse width modulator (HRPWM) channels
• A and B channels of 8 PWM modules have high resolution
• Dead band support (on standard resolution and high resolution)
– 6 Enhanced Acquisition (eCAP) modules
– 3 enhanced quadrature encoder pulse (eQEP) modules
– 8 Δ-Σ Filter module (SDFM) input channel, per pass
Channel has 2 parallel filters
• Standard SDFM data filtering
• Comparator filter for fast response when out of range
• Configurable logical block (CLB)
– Enhance existing peripherals
– Support the Position Manager solution
• Functional safety compliant
– Developed for functional safety applications
– The documentation provided helps to make the ISO 26262 system design compliant
ASIL D, IEC 61508 SIL 3, IEC 60730 Class C and UL 1998 Class 2
– Hardware integrity up to ASIL B and SIL 2
• Safety related certification
– Through TUV SUD, ISO 26262 certification reaches
ASIL Level B and IEC 61508 certified to SIL Level 2
• Packaging options:
– Lead free, green packaging
– 337 solder ball new fine pitch ball array (nFBGA) [suffix ZWT]
– 176 pin PowerPAD ™ Heat enhanced low profile four channel flatpack (HLQFP)
[PTP suffix]
– 100 pin PowerPAD thermal enhanced thin four channel flat
Encapsulation (HTQFP) [PZP suffix]
• Temperature options:
– T: junction temperature from – 40 ° C to 105 ° C
– S: junction temperature from – 40 ° C to 125 ° C
– Q：
– Natural ventilation at 40 ° C to 125 ° C
(AEC Q100 certification for automotive applications)
application
• Medium/short range radar
• Traction inverter motor control
• HVAC large commercial motor control
• Automatic sorting equipment
• CNC control
• AC charging (pile) station
• DC charging (pile) station
• Electric vehicle charging station power module
• Energy storage power conversion system (PCS)
• Central inverter
• Solar power optimizer
• String inverter
• Inverter and motor control
• On board charger (OBC) and wireless charger
• Linear motor segment controller
• Servo driver control module
• AC input BLDC motor driver
• DC input BLDC motor driver
• Industrial AC/DC power supply
C2000 ™ The 32-bit microcontroller is optimized for processing, induction and drive to improve closed-loop performance for real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, and induction and signal processing. The C2000 series includes advanced performance MCU and entry-level performance MCU.
TMS320F2837xS is a powerful 32-bit floating point microcontroller unit (MCU) designed for advanced closed-loop control applications such as industrial motor drivers, photovoltaic inverters and digital power supplies, electric vehicles and transportation, as well as induction and signal processing. In order to accelerate application development, Digital Power Software Development Kit (SDK) for C2000 MCU and C2000 are provided ™ MotorControl software development kit for MCU
(SDK)。 The real-time control subsystem is based on TI's 32-bit C28x floating point CPU, providing 200MHz signal processing performance. The performance of the C28x CPU has been further improved through the new TMU accelerator and VCU accelerator. The TMU accelerator can quickly perform the trigonometry algorithms commonly used in transformation and torque loop calculation; VCU accelerator can shorten the time of complex mathematical operations commonly seen in coding applications.
F2837xS microcontroller product series has CLA real-time control coprocessor. CLA is an independent 32-bit floating point processor, which runs at the same speed as the main CPU. This CLA responds to external triggers and executes code simultaneously with the main C28x CPU. This parallel processing function can effectively double the computing performance of the real-time control system. By using CLA to service time critical functions, the main C28x CPU is free to perform other tasks, such as communication and diagnostics.
TMS320F2837xS supports onboard flash memory up to 1MB (512KW) with error correction code (ECC) and SRAM up to 164KB (82KW). There are also two 128 bit security zones on the CPU for code protection.
F2837xS MCU also integrates high-performance simulation and control peripherals to further realize system integration. Four independent 16 bit ADC can accurately and efficiently manage multiple analog signals, thus ultimately improving the system throughput. new type Σ-Δ Filter Module (SDFM) and Σ-Δ Modulators can be used together to realize isolated parallel current measurement. The comparator subsystem with window comparator (CMPSS) allows protection of the power level when current limits are exceeded or not met. Other analog and control peripherals include DAC, PWM, eCAP, eQEP and other peripherals.
The EMIF, CAN module (conforming to ISO 11898-1/CAN 2.0B standard) and other peripherals as well as the new uPP interface expand the F2837xS connectivity.
The uPP interface is C2000 ™ The new function of MCU supports high-speed parallel connection with FPGA or other processors by using similar uPP interfaces. most
The USB 2.0 port with MAC and PHY allows users to easily add Universal Serial Bus (USB) connectivity to their applications.
Characteristics
• TMS320C28x 32-bit CPU
– 200MHz
– IEEE 754 Single Precision Floating Point Unit (FPU)
– Trigonometric function accelerator (TMU)
– Viterbi/Complex Math Unit (VCU-II)
• Programmable control law accelerator (CLA)
– 200MHz
– IEEE 754 Single Precision Floating Point Instructions
– Execute code independently of the main CPU
• On chip memory
– 512KB (256KW) or 1MB (512KW) flash memory (ECC protected)
– 132KB (66KW) or 164KB (82KW) RAM
(ECC protection or parity protection)
– Support dual zone security developed by third parties
– Unique identification number
• Clock and system control
– Two internal zero pin 10MHz oscillators
– On chip crystal oscillator
– Window watchdog timer module
– Lost clock detection circuit
• 1.2V core, 3.3V I/O design
• System peripherals
– Two external memory interfaces (EMIF) supporting ASRAM and SDRAM
– 6-channel direct memory access (DMA) controller
– Up to 169 independently programmable
Multiplexing universal input/output (GPIO) pin
– Extended Peripheral Interrupt Controller (ePIE)
– Support multiple low power consumption modes (LPM) with external wake-up function
• Communication peripherals
– USB 2.0 (MAC + PHY)
– Support 12 pin 3.3V compatible universal parallel port (uPP) interface
– Two CAN modules (pin bootable)
– Three high-speed (up to 50MHz) SPI ports (pin bootable)
– Two multichannel buffered serial ports (McBSP)
– Four serial communication interfaces (SCI/UART) (pin bootable)
– Two I2C interfaces (pin bootable)
• Analog subsystem
– Up to four analog-to-digital converters (ADC)
• 16 bit mode
– 1.1 MSPS for each (system throughput up to 4.4 MSPS)
– Differential input
– Up to 12 external channels
• 12 bit mode
– 3.5MSPS each (system throughput up to 14MSPS)
– Single ended input
– Up to 24 external channels
• One sample and hold (S/H) circuit per ADC
• Hardware integrated post-processing of ADC conversion
– Saturation offset voltage calibration
– Error in setpoint calculation
– High level, low level and zero crossing comparison with interrupt function
– Trigger to sampling delay acquisition
– Eight window comparators with 12 bit analog converter (DAC) references
– Three 12 bit buffered DAC outputs
• Enhanced control peripherals
– 24 PWM channels with enhanced characteristics
– 16 high-resolution pulse width modulator (HRPWM) channels
• A and B channels of 8 PWM modules have high resolution
• Dead band support (on standard resolution and high resolution)
– 6 Enhanced Acquisition (eCAP) modules
– 3 enhanced quadrature encoder pulse (eQEP) modules
– 8 Δ-Σ Filter module (SDFM) input channel, per pass
Channel has 2 parallel filters
• Standard SDFM data filtering
• Comparator filter for fast response when out of range
• Configurable logical block (CLB)
– Enhance existing peripherals
– Support the Position Manager solution
• Functional safety compliant
– Developed for functional safety applications
– The documentation provided helps to make the ISO 26262 system design compliant
ASIL D, IEC 61508 SIL 3, IEC 60730 Class C and UL 1998 Class 2
– Hardware integrity up to ASIL B and SIL 2
• Safety related certification
– Through TUV SUD, ISO 26262 certification reaches
ASIL Level B and IEC 61508 certified to SIL Level 2
• Packaging options:
– Lead free, green packaging
– 337 solder ball new fine pitch ball array (nFBGA) [suffix ZWT]
– 176 pin PowerPAD ™ Heat enhanced low profile four channel flatpack (HLQFP)
[PTP suffix]
– 100 pin PowerPAD thermal enhanced thin four channel flat
Encapsulation (HTQFP) [PZP suffix]
• Temperature options:
– T: junction temperature from – 40 ° C to 105 ° C
– S: junction temperature from – 40 ° C to 125 ° C
– Q：
– Natural ventilation at 40 ° C to 125 ° C
(AEC Q100 certification for automotive applications)
application
• Medium/short range radar
• Traction inverter motor control
• HVAC large commercial motor control
• Automatic sorting equipment
• CNC control
• AC charging (pile) station
• DC charging (pile) station
• Electric vehicle charging station power module
• Energy storage power conversion system (PCS)
• Central inverter
• Solar power optimizer
• String inverter
• Inverter and motor control
• On board charger (OBC) and wireless charger
• Linear motor segment controller
• Servo driver control module
• AC input BLDC motor driver
• DC input BLDC motor driver
• Industrial AC/DC power supply
• Three phase UPS
