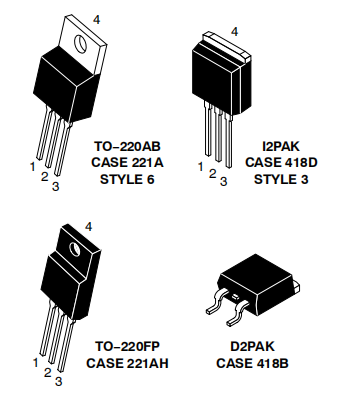

NTSB40100CTT4G D2PAK-3 Schottky diode original channel price advantage

Very Low Forward Voltage

Trench-based Schottky

Rectifier

Exceptionally Low VF = 0.38 V at IF = 5 A

Features

• Fine Lithography Trench−based Schottky Technology for Very Low
Forward Voltage and Low Leakage
• Fast Switching with Exceptional Temperature Stability
• Low Power Loss and Lower Operating Temperature
• Higher Efficiency for Achieving Regulatory Compliance
• Low Thermal Resistance
• High Surge Capability
• Pb−Free and Halide−Free Packages are Available
Typical Applications
• Switching Power Supplies including Notebook / Netbook Adapters,
ATX and Flat Panel Display
• High Frequency and DC−DC Converters
• Freewheeling and OR−ing diodes
• Reverse Battery Protection
• Instrumentation
Mechanical Characteristics
• Case: Epoxy, Molded
• Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Maximum for

10 sec
