FT601Q-B-T QFN-76 USB chip FTDI price concessions
describe
FT60x is a high-performance USB 3.0 to FIFO interface bridge chip. This device can be used for applications that require high data throughput, such as imaging devices and multi-channel FIFO ADC or DAC devices.
The FIFO interface can support multi voltage I/O (1.8V, 2.5V, 3.3V) with a working frequency of 66.67 MHz or 100 MHz. 100MHz is only 2.5V and 3.3V.
Supports two different proprietary synchronization bus protocols; One FIFO bus protocol is called the "multi-channel FIFO" bus protocol, and the other is the "245 synchronous FIFO" bus protocol. The latter is an extension of the interface introduced in the FT232H/FT232H device.

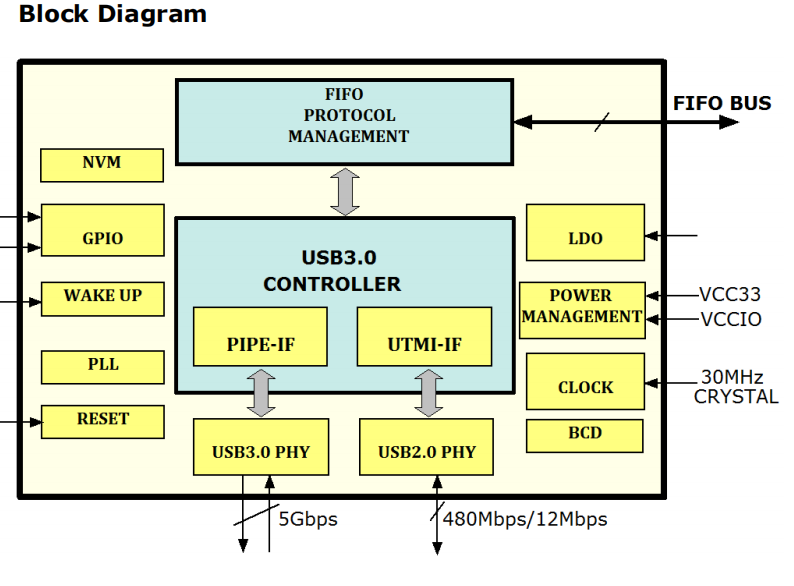

FT600/FT601 is a USB 3.0 to FIFO interface bridge chip with the following advanced features:
Support for USB 3.0 Ultra High Speed (5Gbps)/USB
2.0 High Speed (480Mbps)/USB 2.0 Full Speed
Transmission speed (12Mbps).
Supported USB transfer types:
Control/Batch/Interrupt
Up to 8 configurable endpoints (PIPEs).
Supports two parallel slave FIFO bus protocols
245 and FIFO modes, FT601 with 32-bit
The data burst rate of the parallel interface has increased to 400 MB/s.
Supports 4 input channels and 4 output channels
On the FIFO bus connection.
Built-in 16kB FIFO data buffer RAM.
Support remote wake-up function.
Support multi voltage I/O: 1.8V, 2.5V, and 3.3V.
Configurable GPIO support.
Internal LDO 1.0V regulator.
Integrated power on reset circuit.
User programmable USB descriptors.
Support battery charging specification BC1.2 Battery charging
investigation of crimes
Provide FT600-16 bit/FT601-32 bit FIFO interface.
Industrial operating temperature range: - 40 to 85 degrees C
Provide compact lead-free QFN-76 (32-bit) and QFN-
56 (16 bit) package (all RoHS compliant).
Application
Upgrading legacy peripherals to USB
Using USB to increase system modularity
Interface between PLD/FPGA based design and USB 3.0
USB 3.0 data acquisition
USB 3.0 digital camera interface
USB 3.0 Digital Camera
USB 3.0 interface for printer/scanner
Medical/Industrial Imaging Equipment
FT60x is a high-performance USB 3.0 to FIFO interface bridge chip. This device can be used for applications that require high data throughput, such as imaging devices and multi-channel FIFO ADC or DAC devices.
The FIFO interface can support multi voltage I/O (1.8V, 2.5V, 3.3V) with a working frequency of 66.67 MHz or 100 MHz. 100MHz is only 2.5V and 3.3V.
Supports two different proprietary synchronization bus protocols; One FIFO bus protocol is called the "multi-channel FIFO" bus protocol, and the other is the "245 synchronous FIFO" bus protocol. The latter is an extension of the interface introduced in the FT232H/FT232H device.
FT600/FT601 is a USB 3.0 to FIFO interface bridge chip with the following advanced features:
Support for USB 3.0 Ultra High Speed (5Gbps)/USB
2.0 High Speed (480Mbps)/USB 2.0 Full Speed
Transmission speed (12Mbps).
Supported USB transfer types:
Control/Batch/Interrupt
Up to 8 configurable endpoints (PIPEs).
Supports two parallel slave FIFO bus protocols
245 and FIFO modes, FT601 with 32-bit
The data burst rate of the parallel interface has increased to 400 MB/s.
Supports 4 input channels and 4 output channels
On the FIFO bus connection.
Built-in 16kB FIFO data buffer RAM.
Support remote wake-up function.
Support multi voltage I/O: 1.8V, 2.5V, and 3.3V.
Configurable GPIO support.
Internal LDO 1.0V regulator.
Integrated power on reset circuit.
User programmable USB descriptors.
Support battery charging specification BC1.2 Battery charging
investigation of crimes
Provide FT600-16 bit/FT601-32 bit FIFO interface.
Industrial operating temperature range: - 40 to 85 degrees C
Provide compact lead-free QFN-76 (32-bit) and QFN-
56 (16 bit) package (all RoHS compliant).
Application
Upgrading legacy peripherals to USB
Using USB to increase system modularity
Interface between PLD/FPGA based design and USB 3.0
USB 3.0 data acquisition
USB 3.0 digital camera interface
USB 3.0 Digital Camera
USB 3.0 interface for printer/scanner
Medical/Industrial Imaging Equipment
USB 3.0 instrument
