G6K-2F-Y-TR DC5 signal relay OMRON original stock
Application Examples
• Home appliances

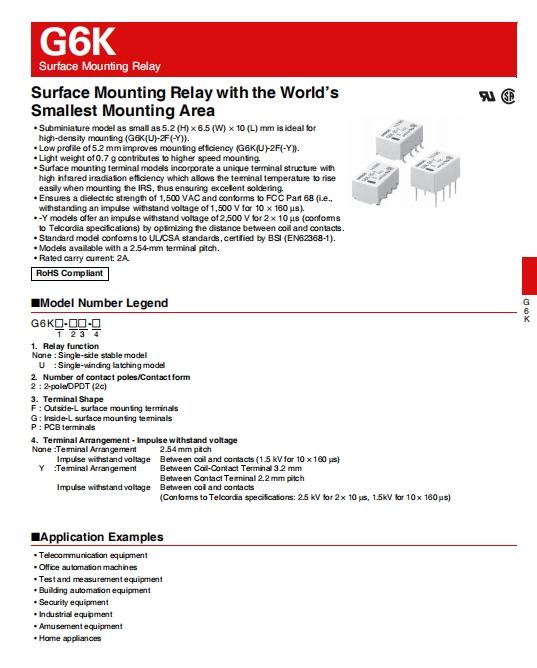

Surface Mounting Relay with the World’s
Smallest Mounting Area
• Subminiature model as small as 5.2 (H) × 6.5 (W) × 10 (L) mm is ideal for
high-density mounting (G6K(U)-2F(-Y)).
• Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y)).
• Light weight of 0.7 g contributes to higher speed mounting.
• Surface mounting terminal models incorporate a unique terminal structure with
high infrared irradiation efficiency which allows the terminal temperature to rise
easily when mounting the IRS, thus ensuring excellent soldering.
• Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e.,
withstanding an impulse withstand voltage of 1,500 V for 10 × 160 μs).
• -Y models offer an impulse withstand voltage of 2,500 V for 2 × 10 μs (conforms
to Telcordia specifications) by optimizing the distance between coil and contacts.
• Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1).
• Models available with a 2.54-mm terminal pitch.
• Rated carry current: 2A.
• Telecommunication equipment
• Office automation machines
• Test and measurement equipment
• Building automation equipment
• Security equipment
• Industrial equipment
• Amusement equipment
