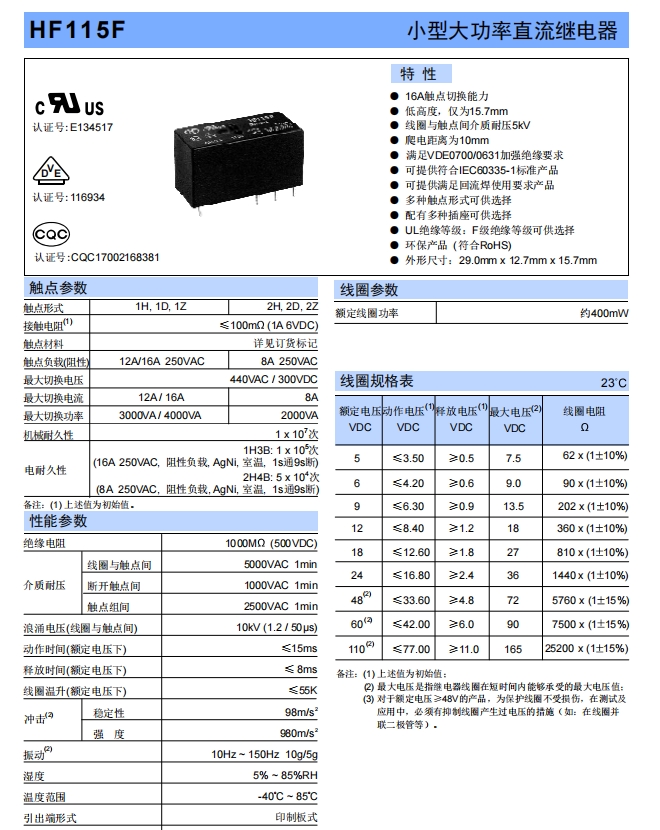

HF115F/012-2HS4AF DIP, 12.7x29mm power relay HF (Hongfa) original stock

Small high-power DC relay

Characteristics

16A contact switching capability

Low height, only 15.7mm

● Dielectric withstand voltage between coils and contacts 5kV

● Creepage distance of 10mm

Meet VDE0700/0631 reinforced insulation requirements

● Can provide products that comply with the IEC60335-1 standard

Can provide products that meet the requirements of reflow soldering

Multiple contact forms to choose from

Equipped with multiple sockets to choose from

UL insulation level: F insulation level available for selection

● Environmentally friendly products (RoHS compliant)

External dimensions: 29.0mm x 12.7mm x 15.7mm
