XL1509-5.0E1 SOIC-8 DC-DC power chip XLSEMI original factory agent

explain

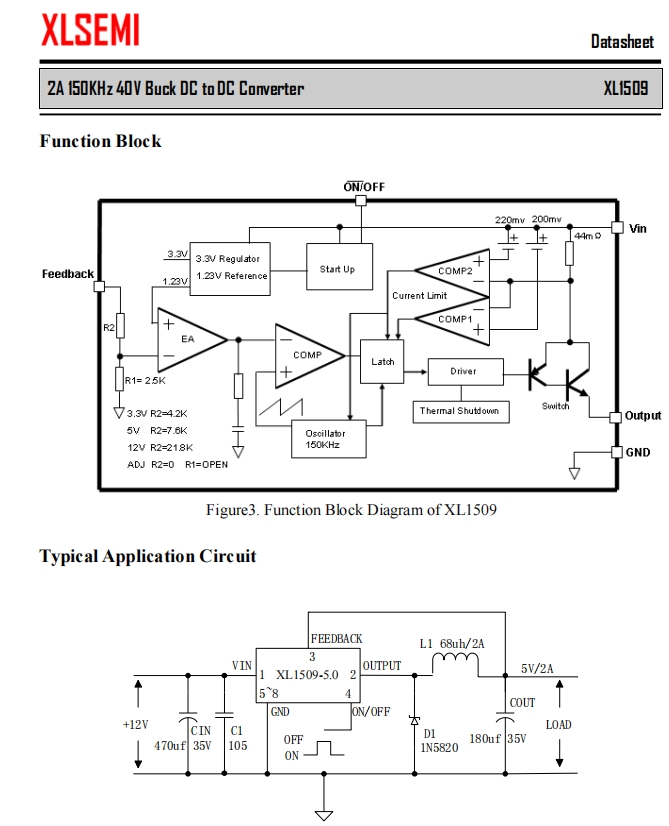

XL1509 is a 150 KHz fixed frequency PWM buck (buck) DC/DC converter that can drive efficient, low ripple, and excellent line and load regulation 2A loads. The minimum number of external components is required, and the regulator is easy to use, including internal frequency compensation and a fixed frequency oscillator.

The PWM control circuit can linearly adjust the duty cycle from 0 to 100%. There are internal enabling functions and overcurrent protection functions. When the second current limiting function occurs, the operating frequency will decrease from 150 KHz to 50 KHz. An internal compensation block is built-in to minimize the count of external components.

Features

n Wide 4.5V to 40V Input Voltage Range
n 3.3V,5V,12V, and adjustable versions
n Output Adjustable from 1.23V to 37V
n Maximum Duty Cycle 100%
n Minimum Drop Out 1.5V
n Fixed 150KHz Switching Frequency
n 2A Constant Output Current Capability
n Internal Optimize Power Transistor
n High efficiency
n Excellent line and load regulation
n TTL shutdown capability
n ON/OFF pin with hysteresis function
n Built in thermal shutdown function
n Built in current limit function
n Built in second current limit function
n Available in SOIC8 package
Applications
n LCD Monitor and LCD TV
n Digital Photo Frame
n Set-up Box
n ADSL Modem

n Telecom / Networking Equipment
