JST 06flz-sm2-tb (LF) (SN) SMD, P = 0.5mm original stock

CONNECTOR

0.5mm pitch/Connectors for FFC and FPC This extremely small 0.5 mm pitch connector with a height of only 2.0 mm above the PCB surface allows interconnection in extremely small spaces

and is an example of JST's leading edge technology.

• Zero insertion force mechanism

• Heat resisting design suitable for surface

mounting

• In-line surface mount tails

• Two types of connections

• Embossed tape for automatic mounting

Specifications

• Current rating: 0.5 A AC, DC

• Voltage rating: 50 V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 40 mΩ max.

After environmental tests/ 60 mΩ max.

• Insulation resistance: 800 MΩ min.

• Withstanding voltage: 200 VAC/minute

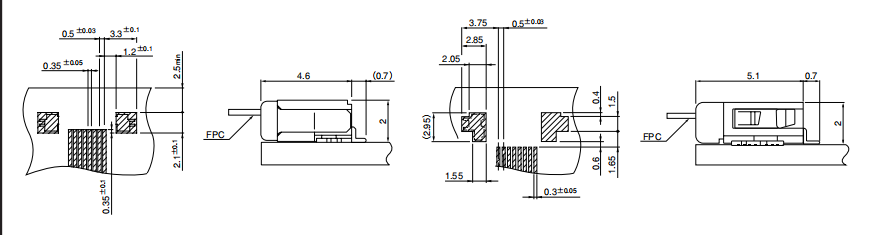

• Applicable FFC and FPC: Conductor pitch/ 0.5 mm

Conductor width/ 0.35 mm

Mating part thickness/ 0.3 ± 0.03 mm

Note: FFC and FPC to be actually used should be checked for applicability.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

Standards

Recognized E60389

Certified LR20812

Inner lock type
