2.0mm pitch / disconnect crimp connector
This is a 2.0mm pitch wire to board connector with incomplete fit prevention mechanism.
• inertia lock structure
• finger friendly design
• safety locking structure
Specifications – ––––––––––––––––
• rated current: 3 a AC, DC (awg#22)
• rated voltage: 100 V AC, DC
• temperature range: - 25 ˚ C to + 85 ˚ C
(including temperature rise during use)
(current)
• contact resistance: initial value / 10 m Ω maximum value.
Maximum value of / 20m Ω after environmental test.
• insulation resistance: 1000m Ω sensitive.
• withstand voltage: 800 VAC / min
• applicable wire: wire size / AWG #28 to #22
Insulation od / 0.76 to 1.5mm
• applicable PC board thickness: 1.6 mm
*Refer to "general instructions and precautions for use"
"Terminals and connectors" at the end of this catalogue.
*Please contact JST for details.
*RoHS compliant.
Standard – –––––––––––––––––––––––––
Approved e60389
This is a 2.0mm pitch wire to board connector with incomplete fit prevention mechanism.
• inertia lock structure
• finger friendly design
• safety locking structure
Specifications – ––––––––––––––––
• rated current: 3 a AC, DC (awg#22)
• rated voltage: 100 V AC, DC
• temperature range: - 25 ˚ C to + 85 ˚ C
(including temperature rise during use)
(current)
• contact resistance: initial value / 10 m Ω maximum value.
Maximum value of / 20m Ω after environmental test.
• insulation resistance: 1000m Ω sensitive.
• withstand voltage: 800 VAC / min
• applicable wire: wire size / AWG #28 to #22
Insulation od / 0.76 to 1.5mm
• applicable PC board thickness: 1.6 mm
*Refer to "general instructions and precautions for use"
"Terminals and connectors" at the end of this catalogue.
*Please contact JST for details.
*RoHS compliant.
Standard – –––––––––––––––––––––––––
Approved e60389
Certified lr20812

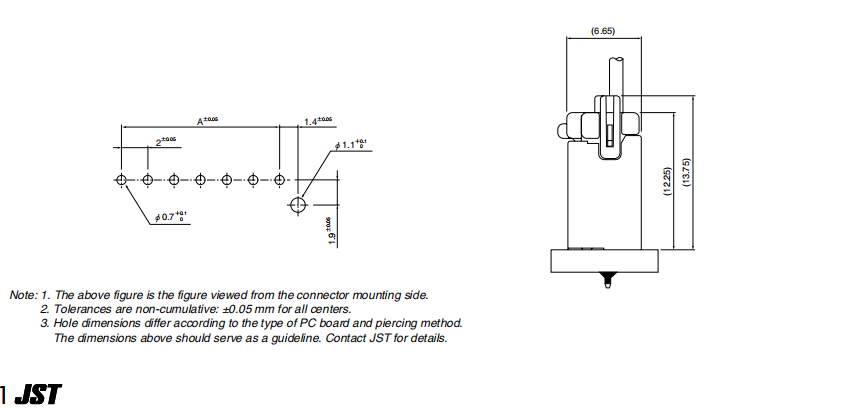

PC board layout and Assembly layout
