2.0mm pitch / disconnect crimp connector

This is a thin, low profile 2.0mm pitch connector, 8.0mm high and 4.5mm wide after installation. It is designed to meet the needs of high-density connection between internal wires and printed circuit boards. It has compact structure, high reliability and low cost.

• reliable connections

• fully covered header

• printed circuit board holding mechanism

• surface mount model (SMT)

Specifications

• rated current: 2A AC, DC (awg#24)

• rated voltage: 100V AC, DC

• temperature range: - 25 ˚ C to + 85 ˚ C

(including temperature rise during use)

(current)

• contact resistance: initial value / 10m Ω maximum value.

Maximum value of / 20m Ω after environmental test.

• insulation resistance: 1000m Ω sensitive.

• withstand voltage: 800V AC / min

• applicable wire: AWG #32 to #24

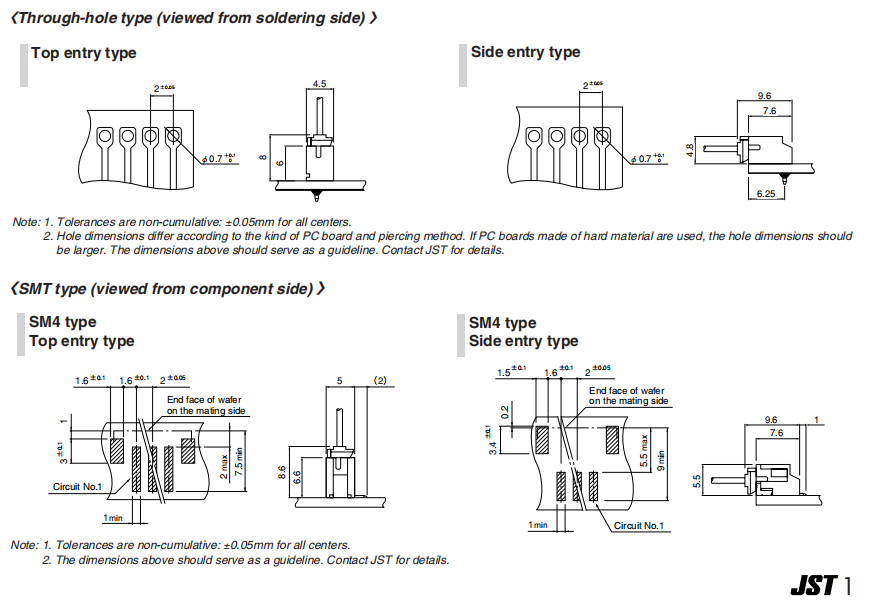

• applicable PC board thickness: 0.8 to 1.6mm

*RoHS compliant.

*Refer to "general instructions and precautions for use"

"Terminals and connectors" at the end of this catalogue.

*Please contact JST for details.

standard

Approved e60389

Certified lr20812

R75087
