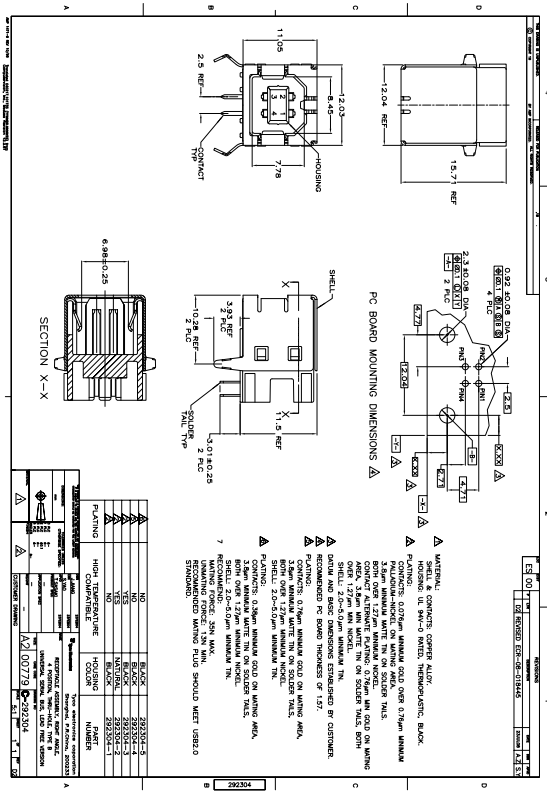

292304-1 USB connector te original stock
292304-1
Specification information:
Manufacturer: te connectivity
Product category: USB connector
RoHS: Yes
Product: USB type B connectors
Type: receptacle (female)
Standard: USB
Termination type: Solder
Number of contacts: 4 contacts
Number of ports: 1 Port
Current rating: 1 A
Installation angle: right
IP level:-
Color: Black
Connector type: USB type B
Contact plating: Gold
Features: without locking feature
Type: type B
Voltage rating: 30 VAC
Trademark: te connectivity
Contact material: copper alloy
Flammability class: UL 94 V-0
Insulation resistance: 1000 MOhms
Maximum operating temperature: + 85 C
Minimum operating temperature: - 55 C
Product type: USB connectors
Factory packing quantity: 100
Subcategory: USB connectors
Part number alias: 292304-1
Specification information:
Manufacturer: te connectivity
Product category: USB connector
RoHS: Yes
Product: USB type B connectors
Type: receptacle (female)
Standard: USB
Termination type: Solder
Number of contacts: 4 contacts
Number of ports: 1 Port
Current rating: 1 A
Installation angle: right
IP level:-
Color: Black
Connector type: USB type B
Contact plating: Gold
Features: without locking feature
Type: type B
Voltage rating: 30 VAC
Trademark: te connectivity
Contact material: copper alloy
Flammability class: UL 94 V-0
Insulation resistance: 1000 MOhms
Maximum operating temperature: + 85 C
Minimum operating temperature: - 55 C
Product type: USB connectors
Factory packing quantity: 100
Subcategory: USB connectors
Part number alias: 292304-1
Unit weight: 2 g
