1759547-1 memory connector - PC card te original stock
1759547-1
Specification information:

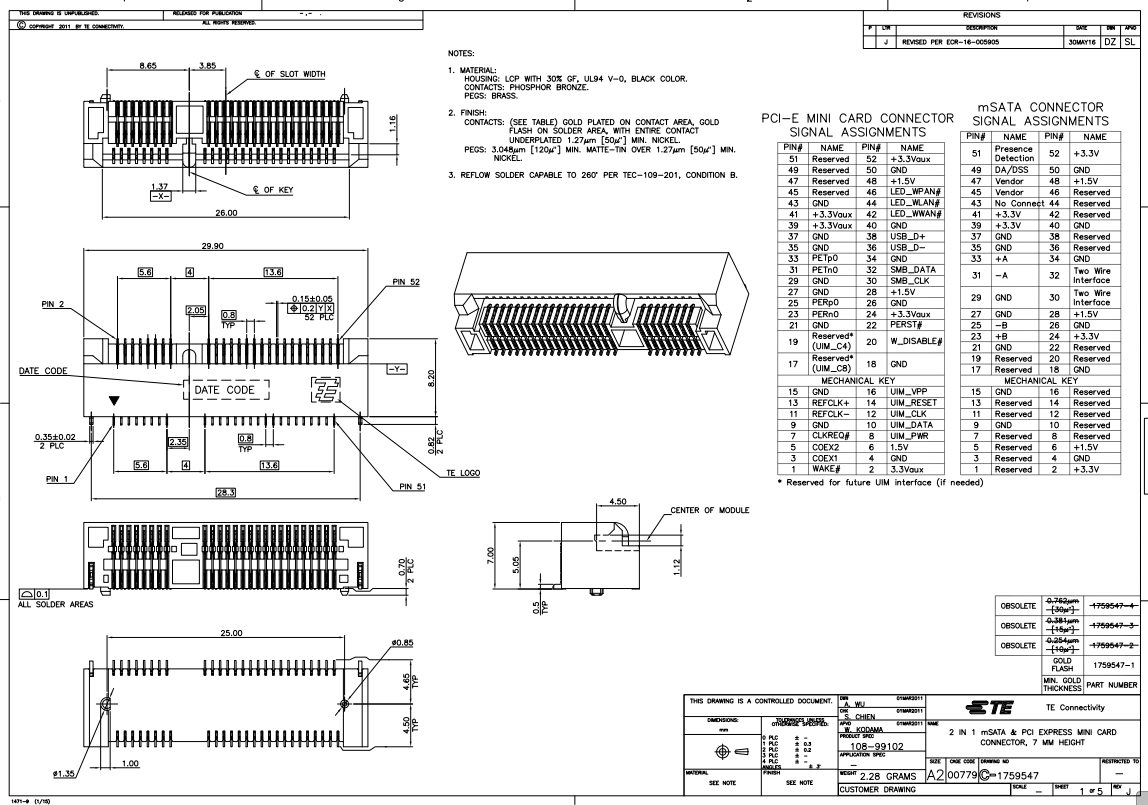

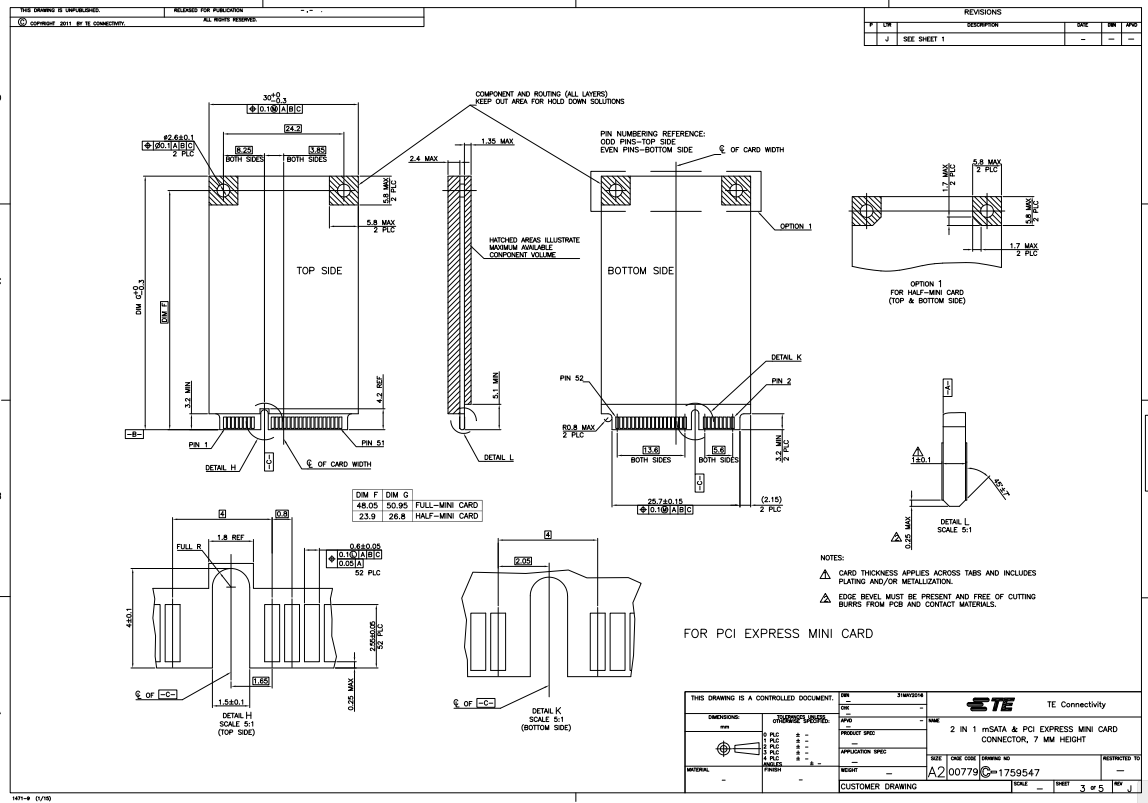

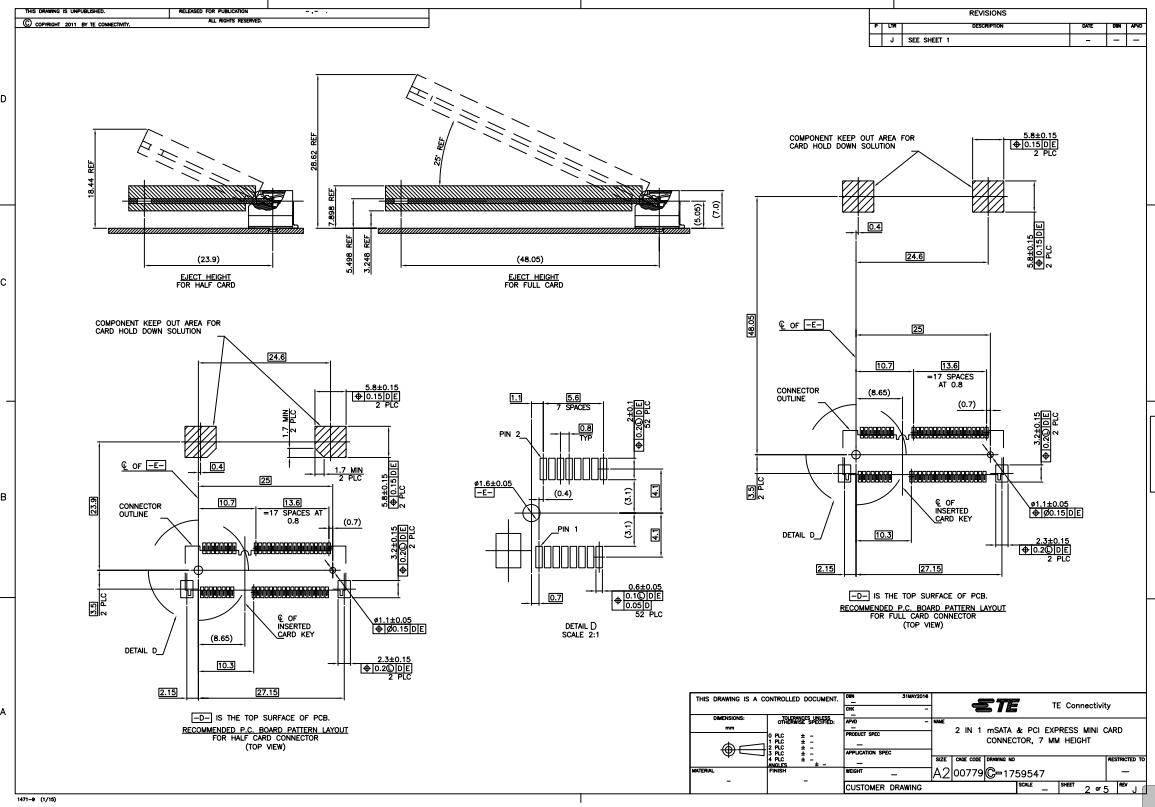

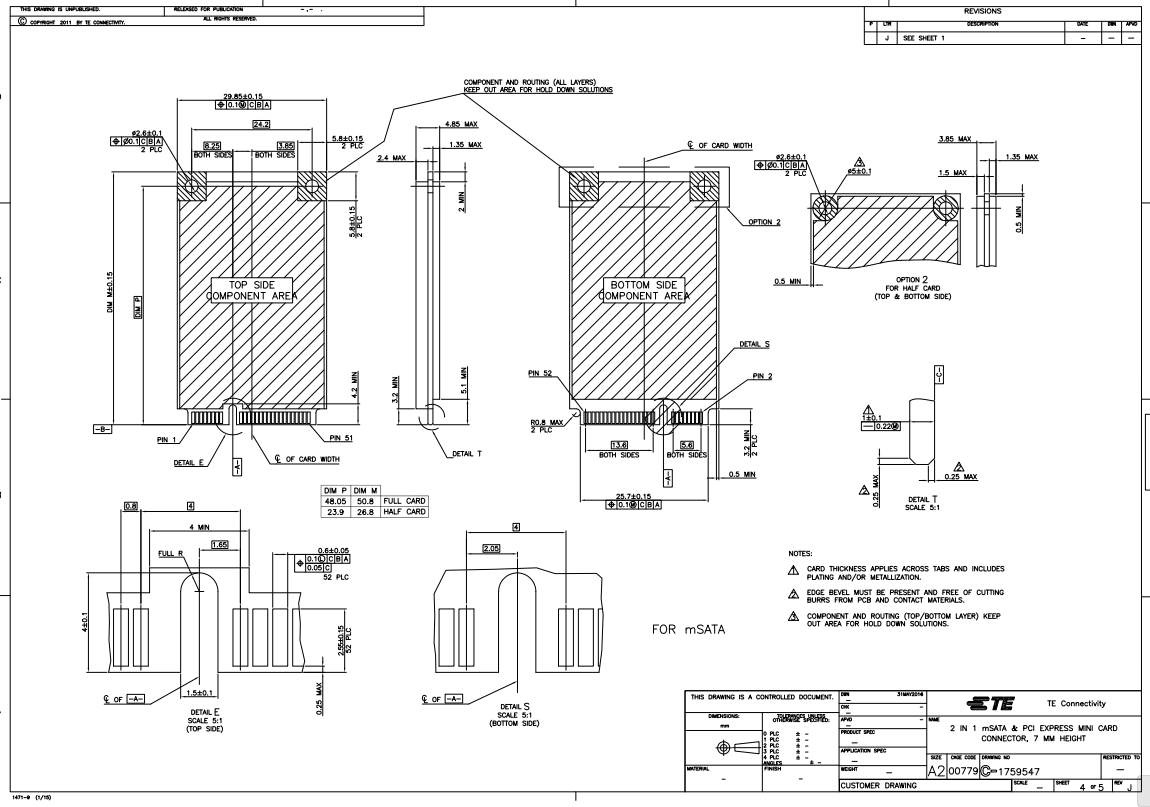

Data list: 1759547 drawing
Standard packaging: 1
Category: connector, interconnection device
Home: memory connector - PC card
Series:-

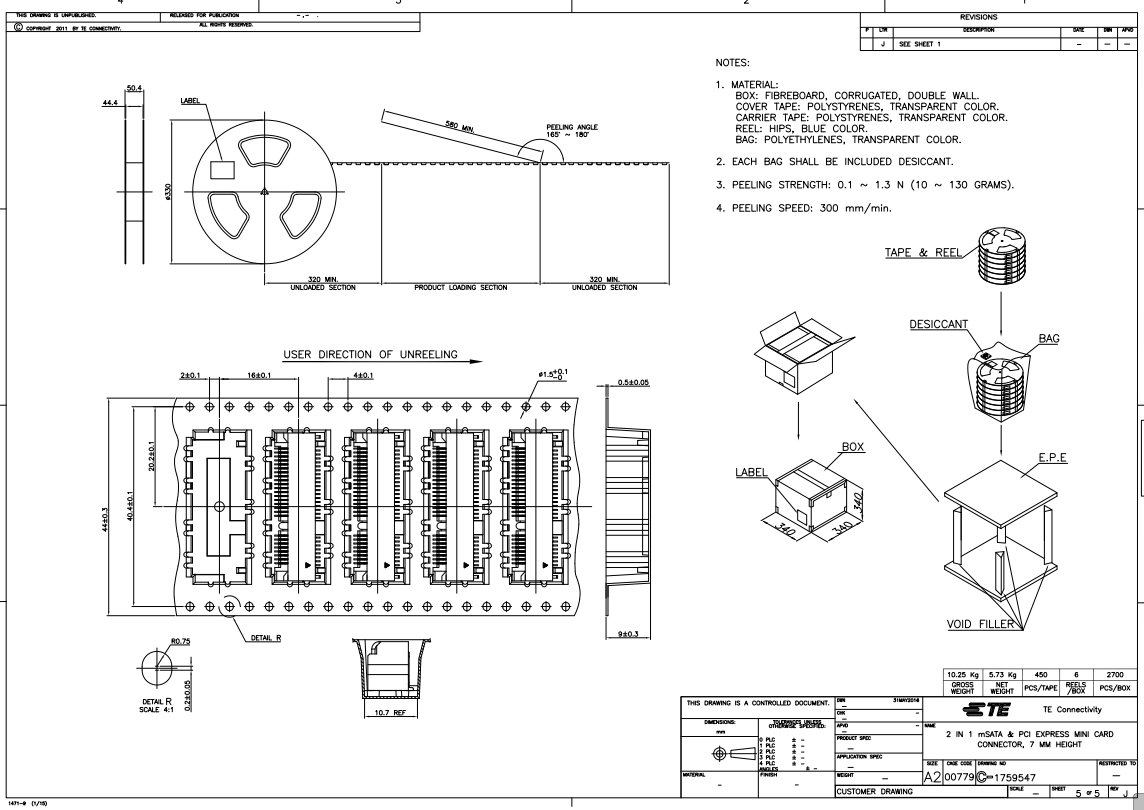

Packaging: shear band (CT)
Card type: PCI Express mini card
Number of pins: 52
Connector type: connector
Insertion and removal methods: push in and pull out
Ejector end:-
Installation type: surface mount, right angle
Properties: plate guides
Slab height: 0.275 "(7.00mm)
Installation characteristics: normal, standard - Top
Contact coating: Gold
Contact coating thickness: Flash
Other name: a117296a117296-nda117296ct
