5747840-6 D-sub connector te original stock

5747840-6

Specification information:

Data list: 5747840-2 amplimit catalog

Product training module: amplimited D-sub connectors

Featured product: amplimited d-subminiature connectors

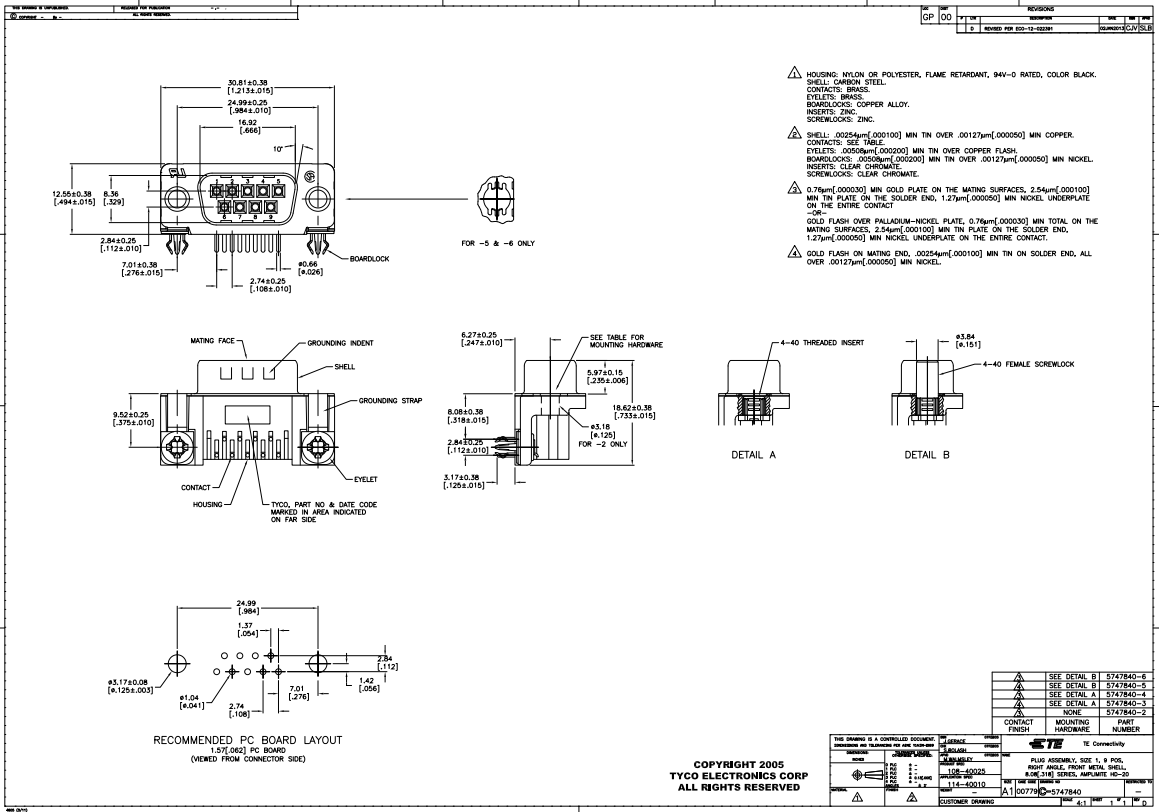

3D model: 5747840-6 pdf

Standard package: 130

Category: connector, interconnection device

Home: D-sub connector

Series: amplimit hd-20

Packaging: pallets

Connector style: D-sub

Connector type: plug, male pin

Number of pins: 9

Number of rows: 2

Enclosure size, connector layout: 1 (De, e)

Contact type: signal

Installation type: through hole, right angle

Flange characteristics: mating side; Female screw lock (4-40)

Termination: Welding

Features: plate lock, grounding strip, grounding dent

Shell material, coating: steel, tinned

Contact coating: Gold

Contact coating thickness: 30 µ in (0.76 µ m)

Intrusion protection:-

Operating temperature: - 55 ° C ~ 105 ° C

Rated voltage: 125V

Rated current: 6A

Enclosure material:-

Color: Black

Other name: 57478406a32094
