894858000 USB connector MOLEX in stock

894858000

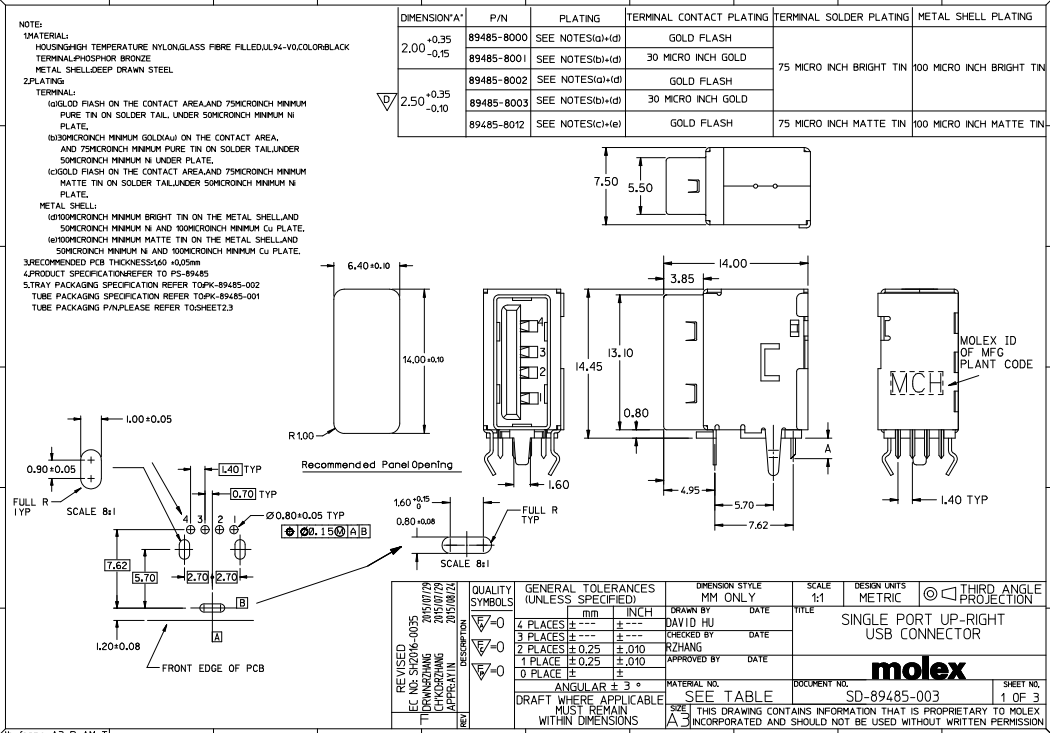

Specification information:

Number of pins: 4

Number of circuits: 4

Contact points: 4

Insulation resistance: 1.00 G_

Polarity: Female

Pin spacing: 2.50 mm

Rated current: 500 mA

Shell material: Thermoplastic

Flammability rating: UL 94 V-0

Contact material: Phosphor Bronze

Color: Black

Shell color: Black

Halogen-free state: Not Low Halogen

Contact plating: Gold

Direction: Vertical

Length: 14.0 mm

Width: 7.50 mm

Height: 14.4 mm

Installation method: Through Hole, Vertical

Packaging method: Tray

REACH SVHC Standard: No SVHC

Lead standard: Lead Free

RoHS standard: Compliant

Product life cycle: Active
