Df11-4dp-2dsa line to board / line to line connector hrs original stock

features

1. Save space on board

The double row contact device with 2mm spacing has been compressed within 5mm width. With the traditional 2mm single head, the signal connector can be fixed in the same space.

2. A wide range of varieties

There are two connection methods: insulation displacement and crimping. Changes can be made in cable to board, online, and board to board to expand PCB design freedom. In addition, gold plating and tin plating can be selected according to the application, and SMT compatible products can also be provided.

3. Widely applicable wire range

Double 2mm pitch rows are compact while making the applicable wire range 22 to 30awg.

4. IDC type can reduce assembly time

Since the DF11 insulation shift allows two rows of IDC, the control can be completed separately through the machine connection.

Apply

Commercial equipment, such as copiers, printers, etc.

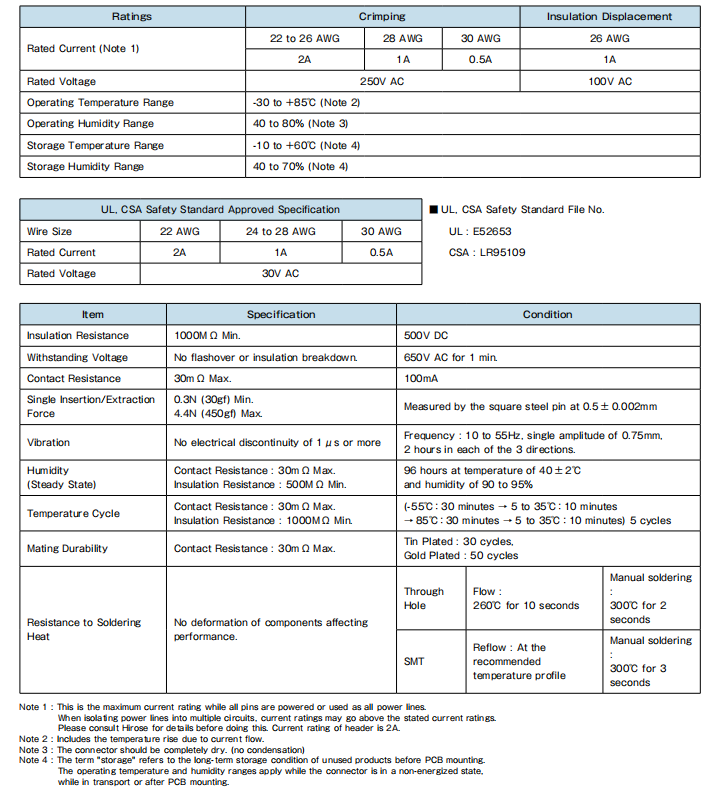

Product specification
