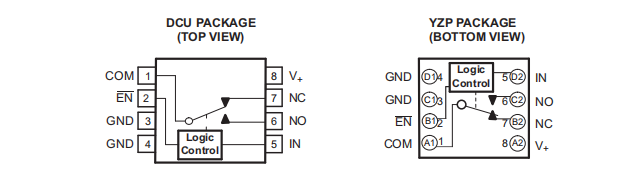

Ts5a3154dcur vssop-8 single channel 2:1 multiplexer / demultiplexer

describe

Ts5a3154 is a single pole double throw (SPDT) analog switch designed to operate from 1.65v to 5.5V. The device provides a low on state resistance and an excellent channel to channel on state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make the device suitable for portable audio applications.

function

• specified on-off switch

• low on state resistance (0.9 Ω)

• the control input is 5.5 V tolerance

• low charge injection

• excellent on resistance matching

• low total harmonic distortion (THD)

• 1.65-v to 5.5-v single supply operation

• locking performance exceeding 100 mA per jesd 78, class II

• test ESD performance according to jesd 22

– 2000-v manikin (a114-b, class II)

– 1000-v charging equipment model (C101)

application program

• mobile phones

•PDA

• portable instruments

• audio and video signal routing

• low voltage data acquisition system

• communication circuit

• modem

• hard disk drives

• computer peripherals

• wireless terminals and peripherals
