Fh12-30s-0.5sva (54) ffc/fpc connector hrs original stock

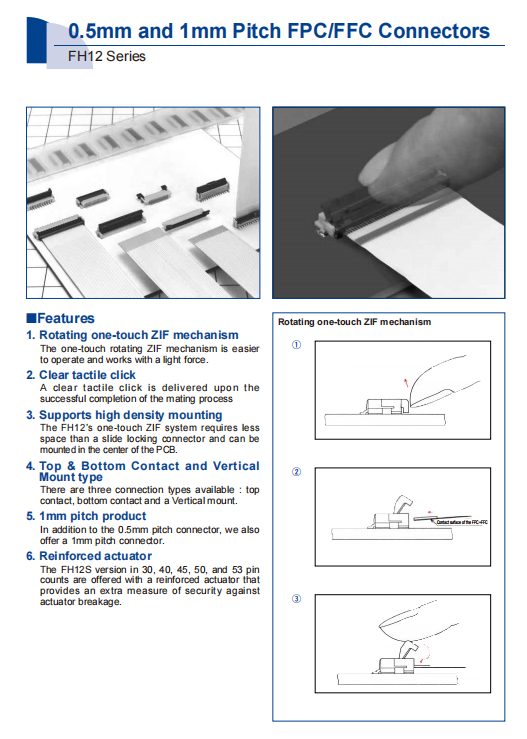

■Features
1. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier
to operate and works with a light force.
2. Clear tactile click
A clear tactile click is delivered upon the
successful completion of the mating process
3. Supports high density mounting
The FH12’s one-touch ZIF system requires less
space than a slide locking connector and can be
mounted in the center of the PCB.

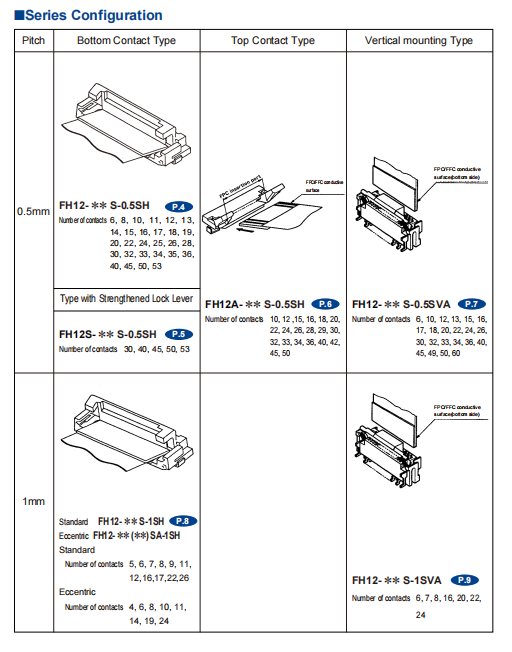

4. Top & Bottom Contact and Vertical
Mount type
There are three connection types available : top
contact, bottom contact and a Vertical mount.
5. 1mm pitch product
In addition to the 0.5mm pitch connector, we also
offer a 1mm pitch connector.
6. Reinforced actuator
The FH12S version in 30, 40, 45, 50, and 53 pin
counts are offered with a reinforced actuator that
provides an extra measure of security against
actuator breakage.
