Dp83822irhbr low power 10/100 Ethernet physical layer (PHY) transceiver with powerful performance is the best price
Characteristics of dp83822i
Ultra robust 10/100mbs phy
IEC 6100-4-2 esd:+ / - 8Kv contact discharge
IEC 6100-4-4 EFT: Class A at 4KV
CISPR 22 conducted emissions: Class B
CISPR 22 radiated emissions: Class B
Operating temperature: -40c - 125C
MAC interface: rgmii/rmii/mii
Comply with IEEE 802.3u standards: 100Base-FX, 100base-tx and 10base te
Flexible power options
Low power single power option
1.8V AVD < 120mW
3.3V AVD < 220mW
Available i/o voltage: 3.3 V / 2.5 V / 1.8 V
Battery Save
Energy efficient Ethernet (EEE) IEEE 802.3az
WOL (Wake on LAN) support, with magic packet detection function
Programmable energy saving mode
IEEE 1588 time stamp frame start monitoring
Diagnostic tools: Cable diagnosis, BIST (built-in self-test), loopback, fast link disconnection detection
Automatic crossover in forced mode
Description of dp83822i

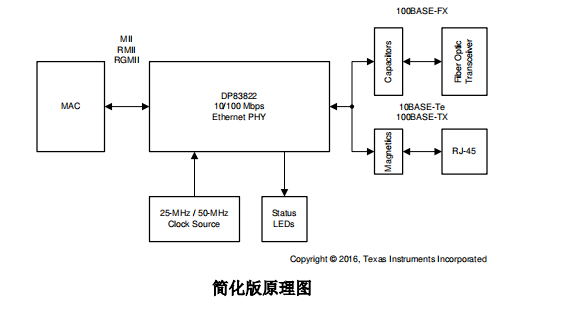

Dp83822 is an ultra robust, low-power single port 10/100mbps Ethernet PHY, ideal for harsh industrial environments. It provides all the physical layer functions required to send and receive data through standard twisted pair cables or connect to external optical transceivers. In addition, dp83822 can be flexibly connected to MAC through standard MII, RMII or rgmii interfaces.
For ease of use, dp83822 provides integrated cable diagnostic tools, built-in self-test and loopback functions. It can support multiple industrial fieldbuses with its fast downlink detection and automatic mdix function in forced mode.
Dp83822 provides an innovative and reliable solution to reduce power consumption, which will be realized through EEE, WOL and other programmable energy-saving modes.
Dp83822 is a feature rich pin to pin scalable option for tlk105, tlk106, tlk105l, and tlk106l 10/100 Mbps Ethernet PHY.
Ultra robust 10/100mbs phy
IEC 6100-4-2 esd:+ / - 8Kv contact discharge
IEC 6100-4-4 EFT: Class A at 4KV
CISPR 22 conducted emissions: Class B
CISPR 22 radiated emissions: Class B
Operating temperature: -40c - 125C
MAC interface: rgmii/rmii/mii
Comply with IEEE 802.3u standards: 100Base-FX, 100base-tx and 10base te
Flexible power options
Low power single power option
1.8V AVD < 120mW
3.3V AVD < 220mW
Available i/o voltage: 3.3 V / 2.5 V / 1.8 V
Battery Save
Energy efficient Ethernet (EEE) IEEE 802.3az
WOL (Wake on LAN) support, with magic packet detection function
Programmable energy saving mode
IEEE 1588 time stamp frame start monitoring
Diagnostic tools: Cable diagnosis, BIST (built-in self-test), loopback, fast link disconnection detection
Automatic crossover in forced mode
Description of dp83822i
Dp83822 is an ultra robust, low-power single port 10/100mbps Ethernet PHY, ideal for harsh industrial environments. It provides all the physical layer functions required to send and receive data through standard twisted pair cables or connect to external optical transceivers. In addition, dp83822 can be flexibly connected to MAC through standard MII, RMII or rgmii interfaces.
For ease of use, dp83822 provides integrated cable diagnostic tools, built-in self-test and loopback functions. It can support multiple industrial fieldbuses with its fast downlink detection and automatic mdix function in forced mode.
Dp83822 provides an innovative and reliable solution to reduce power consumption, which will be realized through EEE, WOL and other programmable energy-saving modes.
Dp83822 is a feature rich pin to pin scalable option for tlk105, tlk106, tlk105l, and tlk106l 10/100 Mbps Ethernet PHY.
Dp83822 adopts 32 pin 5.00mm × 5.00mm vqfn package.
