Drv5033ajqdbzr SOT-23 magnetic sensor has the lowest price
Features of drv5033
Digital all pole switch Hall sensor
Excellent temperature stability
BOP ± 10% within the temperature range
Multiple sensitivity options (bop/brp):
± 3.5/ ± 2Mt (FA, see)
± 6.9/ ± 3.5Mt (AJ, see)
Detect the North-South magnetic field
Support wide voltage range
2.5V to 38V
No external regulator required
Wide operating voltage range
TA = -40 to 125 ° C (Q, see)
Open drain output (30mA perfusion current)
35 µ s fast power on time

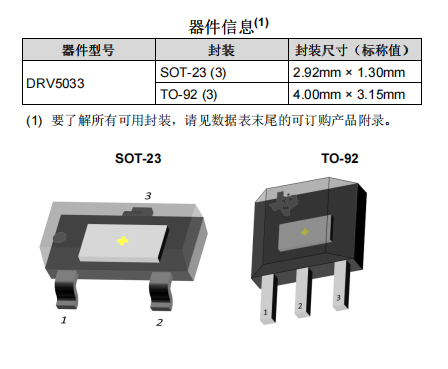

Small package size
Surface mount 3-pin small overall size transistor (SOT) -23 (DBZ)
2.92mm × 2.37mm
Plug in 3-pin TO-92 (LPG)
4.00mm × 3.15mm
Protection characteristics
Reverse power protection (up to -22v)
Support load shedding up to 40V
Output short circuit protection
Output current limit
application
Docking inspection
Door switch detection
Proximity sensing
Valve positioning
Pulse count
Description of drv5033
Drv5033 device is a chopper stabilized Hall effect sensor, which can provide magnetic field sensing function with excellent sensitivity stability and integrated protection characteristics in the whole temperature range.

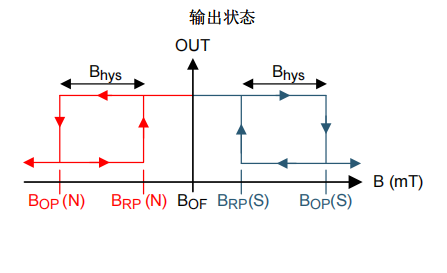

Drv5033 has the same response to the two pole directions of the magnetic field. When the applied magnetic flux density exceeds the BOP threshold, the drv5033 open drain output becomes low. The output will remain low until the magnetic flux density drops below BRP and then becomes high impedance. The output current filling capacity is 30mA. The wide working voltage range (2.5 to 38V) with reverse polarity protection up to -22v makes this device widely applicable to various industrial signals.
Digital all pole switch Hall sensor
Excellent temperature stability
BOP ± 10% within the temperature range
Multiple sensitivity options (bop/brp):
± 3.5/ ± 2Mt (FA, see)
± 6.9/ ± 3.5Mt (AJ, see)
Detect the North-South magnetic field
Support wide voltage range
2.5V to 38V
No external regulator required
Wide operating voltage range
TA = -40 to 125 ° C (Q, see)
Open drain output (30mA perfusion current)
35 µ s fast power on time
Small package size
Surface mount 3-pin small overall size transistor (SOT) -23 (DBZ)
2.92mm × 2.37mm
Plug in 3-pin TO-92 (LPG)
4.00mm × 3.15mm
Protection characteristics
Reverse power protection (up to -22v)
Support load shedding up to 40V
Output short circuit protection
Output current limit
application
Docking inspection
Door switch detection
Proximity sensing
Valve positioning
Pulse count
Description of drv5033
Drv5033 device is a chopper stabilized Hall effect sensor, which can provide magnetic field sensing function with excellent sensitivity stability and integrated protection characteristics in the whole temperature range.
Drv5033 has the same response to the two pole directions of the magnetic field. When the applied magnetic flux density exceeds the BOP threshold, the drv5033 open drain output becomes low. The output will remain low until the magnetic flux density drops below BRP and then becomes high impedance. The output current filling capacity is 30mA. The wide working voltage range (2.5 to 38V) with reverse polarity protection up to -22v makes this device widely applicable to various industrial signals.
The device provides internal protection against reverse power supply conditions, sudden load drop, and output short-circuit or overcurrent faults.
