describe

The device is a four channel high-end drive that uses ST's proprietary vipower ® Manufactured by technology and installed in powerso-16 package. The device is designed to drive 12V vehicle grounding load through a 3V and 5vcmos compatible interface to provide protection and diagnosis.

The device integrates advanced protection functions, such as load current limit, overload active management power limit, overtemperature shutdown and configurable lockout shutdown.

Faultrst pin unlocks the output or disables the shutdown function in case of fault.

A dedicated multi-function multi-channel analog output pin provides complex diagnostic functions, including high-precision proportional load flu, power supply voltage feedback and chip temperature sensing, in addition to detecting overload and short circuit to ground, short circuit to VCC and off state load.

The sense enable pin allows the off state diagnosis to be disabled in the low power mode of the module and the off state diagnosis to be disabled when an external inductive resistor is shared between similar devices

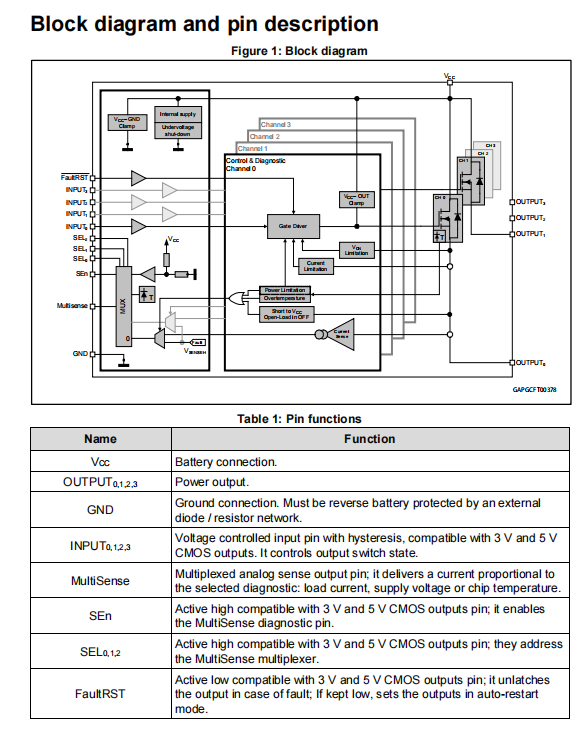

Characteristics

• qualified cars

• overview

− four channel intelligent high-end drive

With multi-sensor analog feedback

− very low standby current

− compatible with 3 V and 5 V CMOS

output

• multi sensor diagnostic function

− multiple analog feedback of load

High precision proportional current

Current mirror, VCC supply voltage and tchip device temperature

− overload and short circuit to ground (power limit) indication

− thermal shutdown indication

− open circuit load detection in disconnected state

− output short circuit detection to VCC

− sensing enable / disable

• protection

− undervoltage shutdown

− overvoltage clamp

− load current limit

− self limiting of fast thermal transients

− configurable lockout open

Overheating or power limitation

With dedicated fault reset pin

− ground loss and VCC loss

− with external reverse battery

assembly

− electrostatic discharge protection

application

• all types of automotive resistive, inductive

And capacitive load

• designed for car signals

Lamps (up to r10w or LED rear combination)
