Ncp3063bdr2 DC-DC power chip on (original stock)
1.5A, step-up / step-down / inverting switching regulator
Ncp3063 series is a high-frequency upgrade of the popular mc34063a and mc33063a monolithic DC − DC converters. These devices include an internal temperature compensated reference, a comparator, a controlled duty cycle oscillator with an active current limiting circuit, a driver, and a high current output switch. This series is specially designed to combine step − down, step − up and voltage − inversion applications with a minimum number of external components.
features
• operate to 40 V input
• low standby current
• output switching current is 1.5 A
• adjustable output voltage
• operation at 150 kHz
• reference accuracy of 1.5%
• new function: internal thermal shutdown with hysteresis
New function: cycle − through − cycle current limit
• Pb − provides free package
application

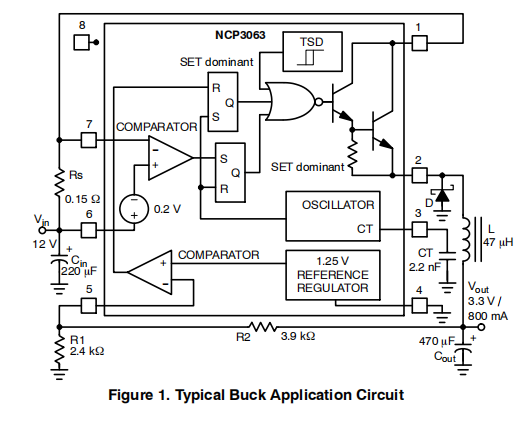

• step − down, step − up conversion power supply application
• high power LED lighting
Ncp3063 series is a high-frequency upgrade of the popular mc34063a and mc33063a monolithic DC − DC converters. These devices include an internal temperature compensated reference, a comparator, a controlled duty cycle oscillator with an active current limiting circuit, a driver, and a high current output switch. This series is specially designed to combine step − down, step − up and voltage − inversion applications with a minimum number of external components.
features
• operate to 40 V input
• low standby current
• output switching current is 1.5 A
• adjustable output voltage
• operation at 150 kHz
• reference accuracy of 1.5%
• new function: internal thermal shutdown with hysteresis
New function: cycle − through − cycle current limit
• Pb − provides free package
application
• step − down, step − up conversion power supply application
• high power LED lighting
• battery charger
