3-53652-6 board to board connector te agent shipment

3-5353652-6

Specification information:

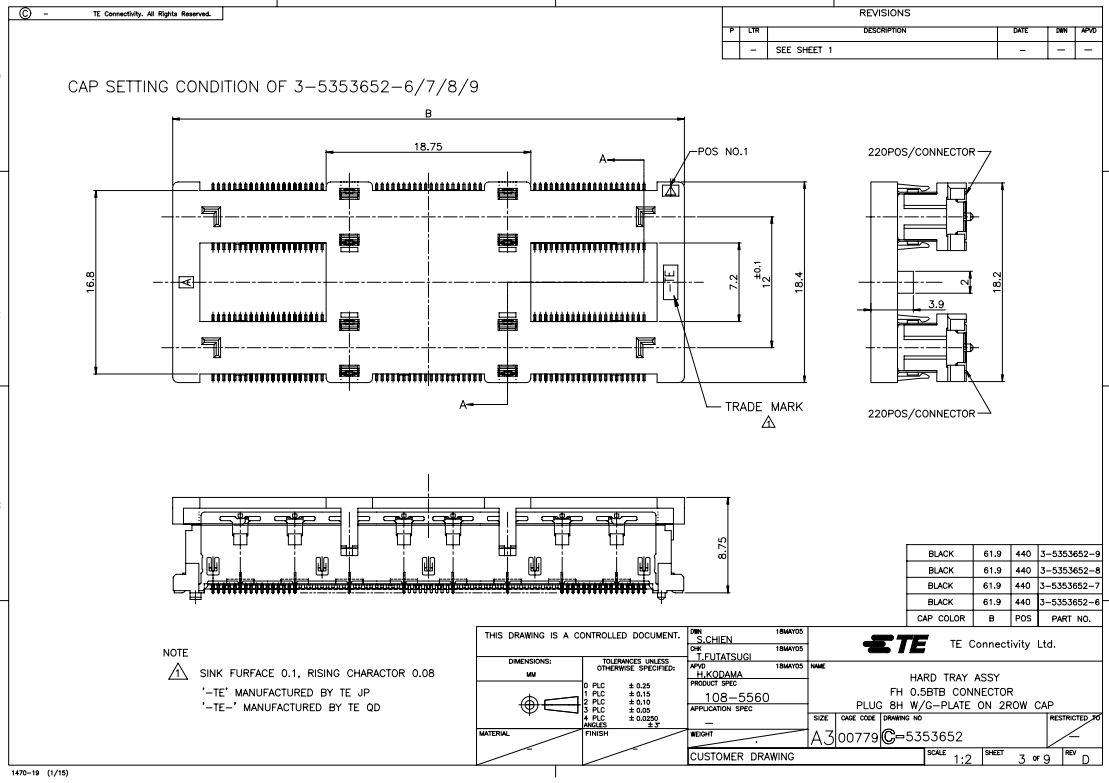

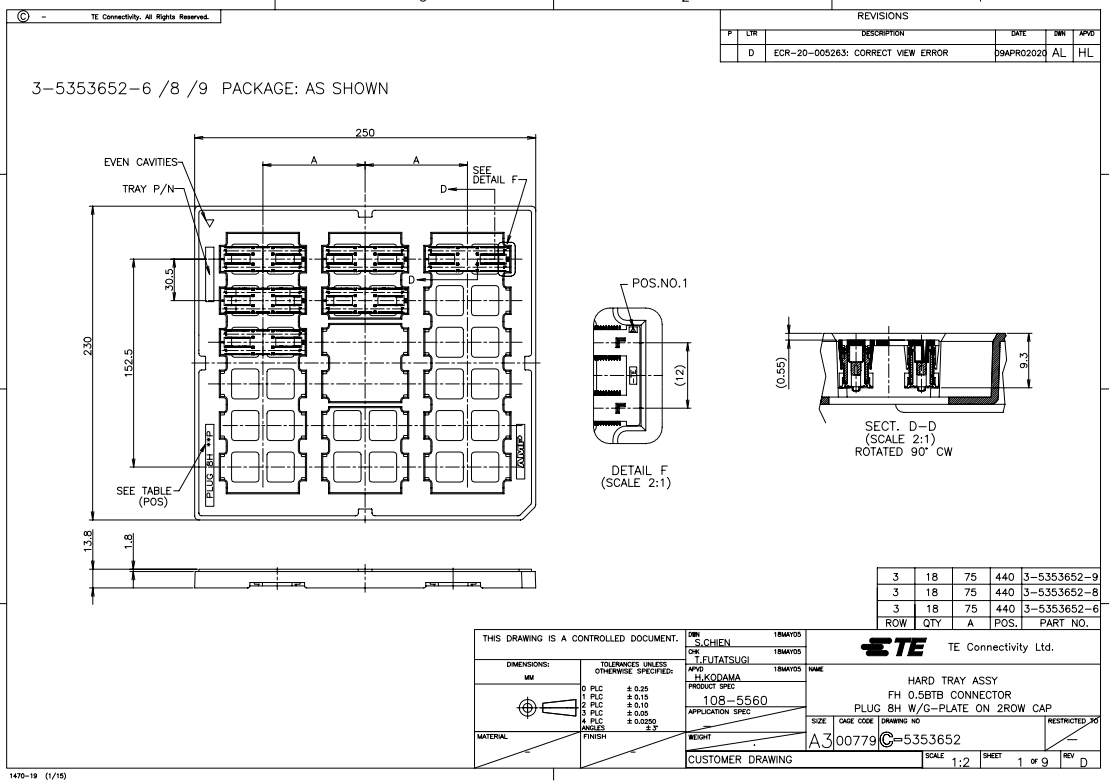

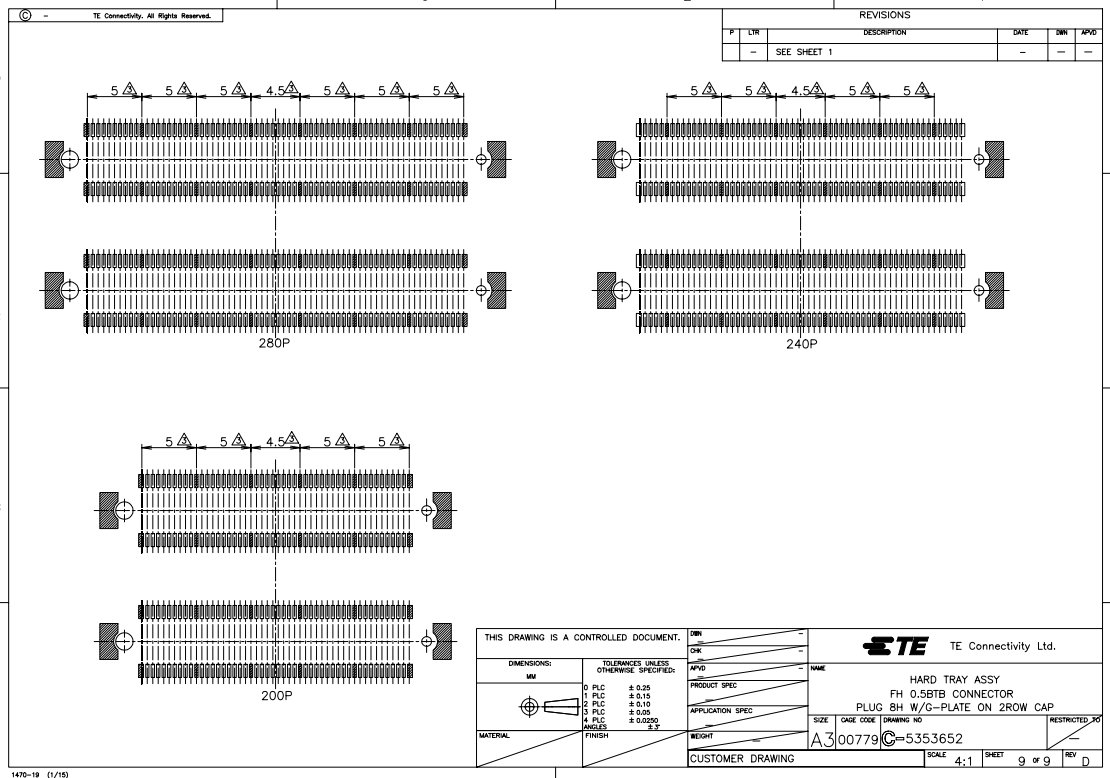

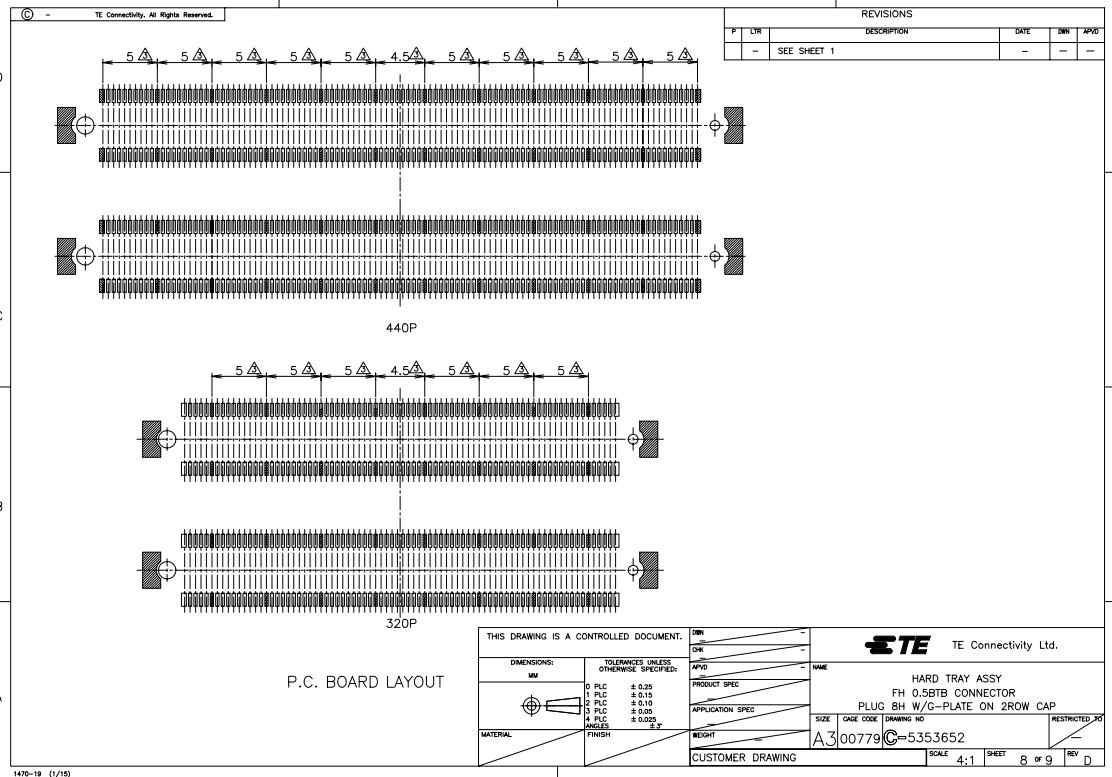

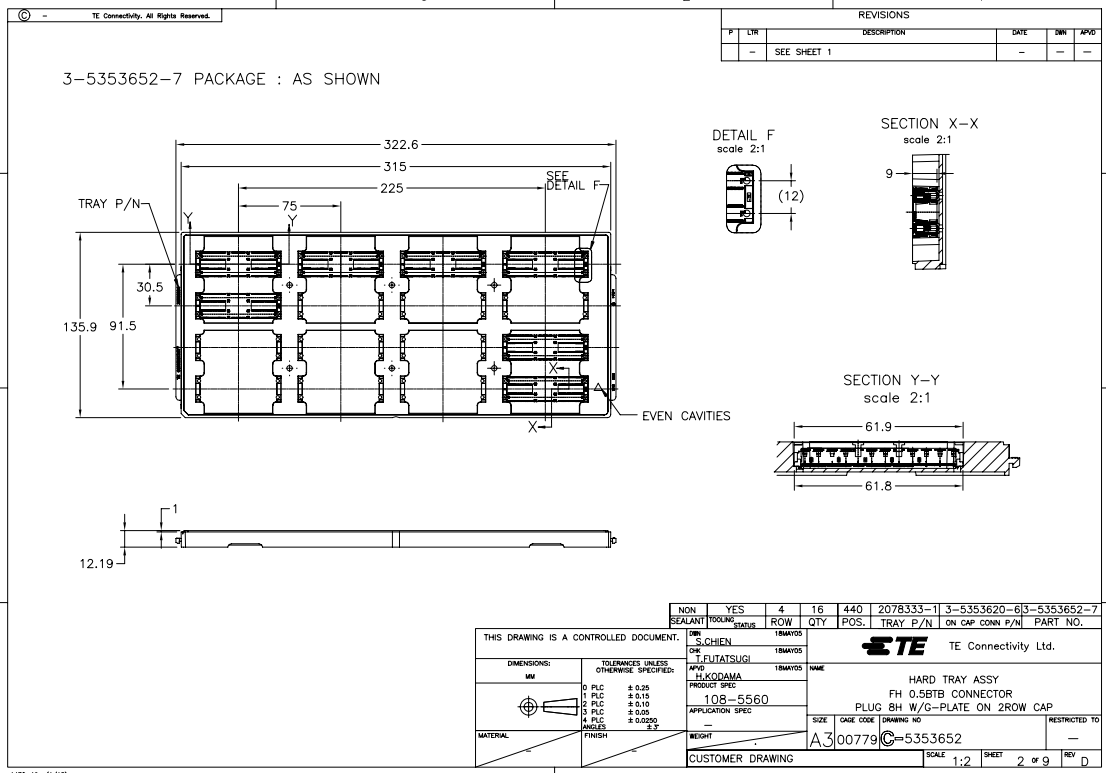

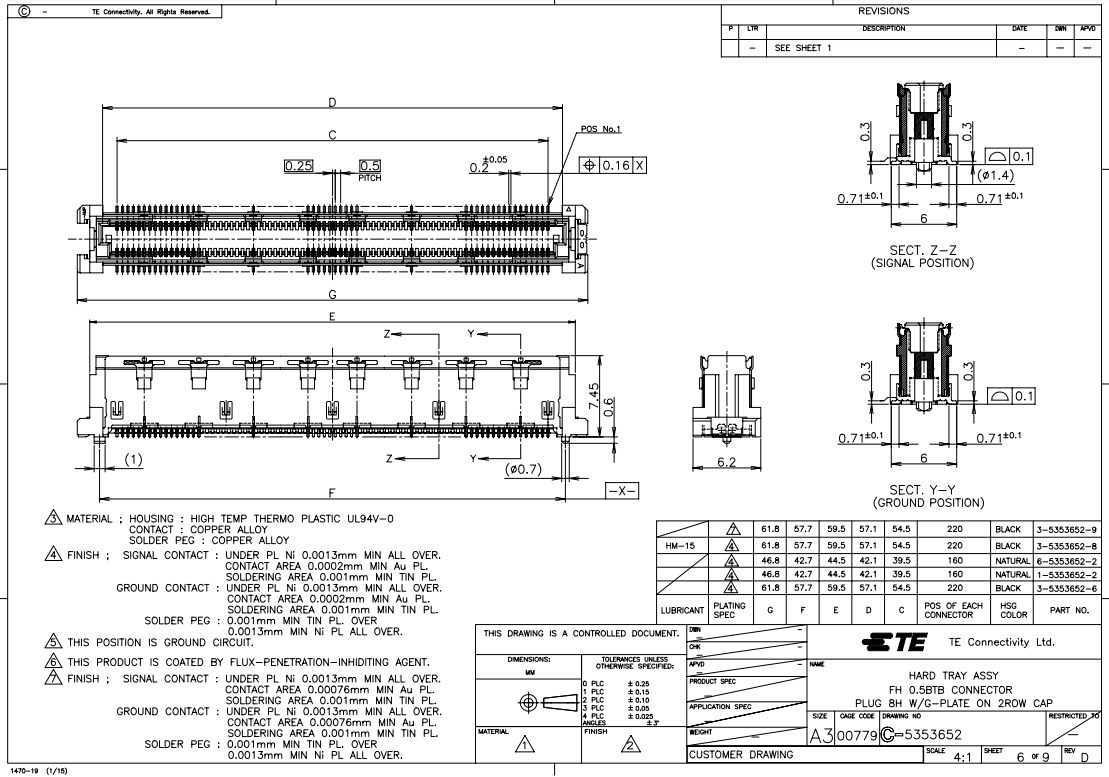

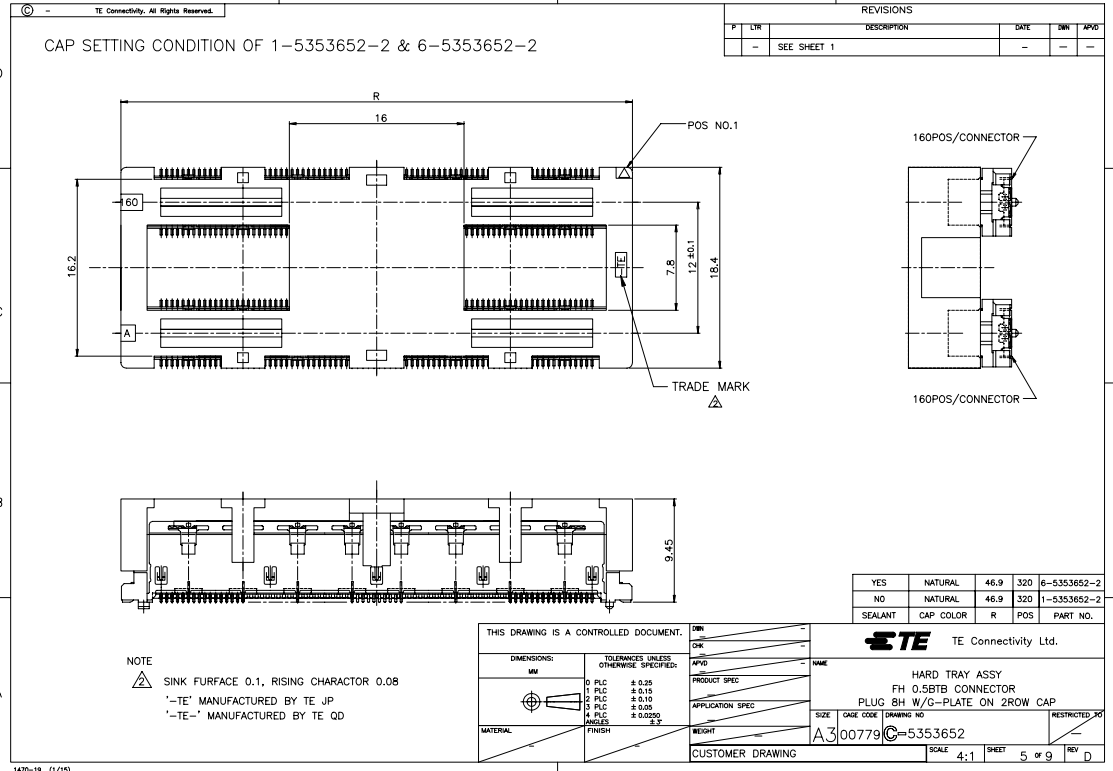

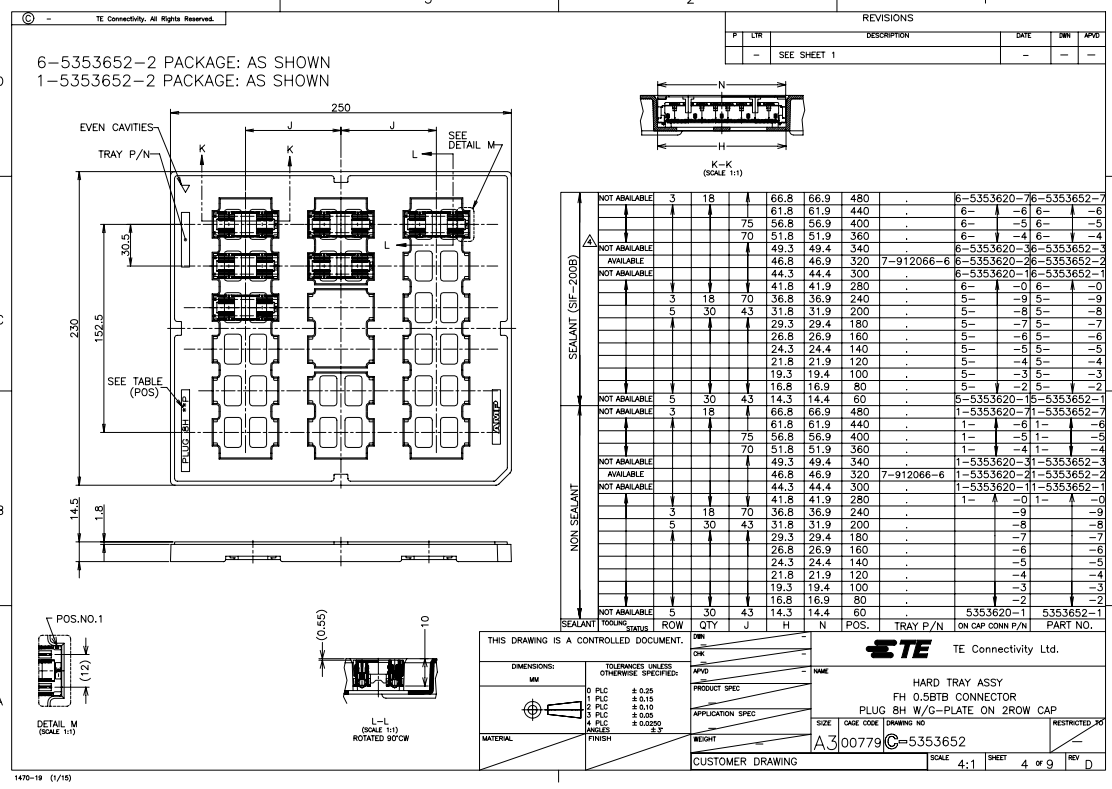

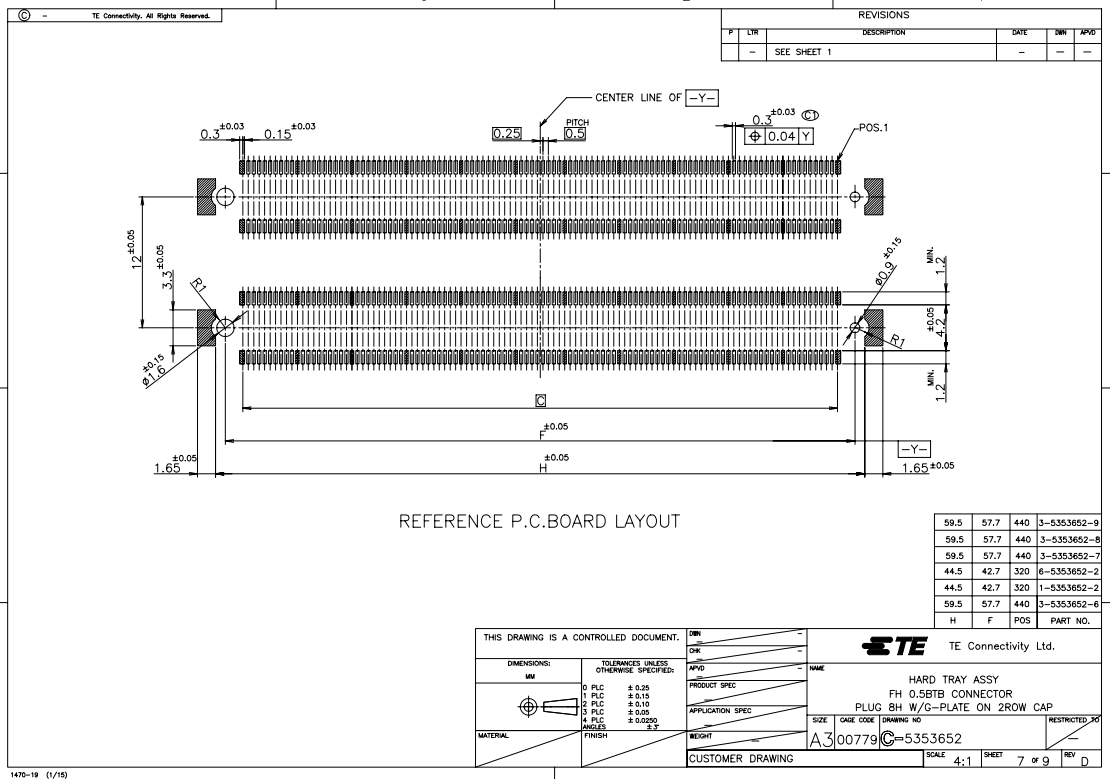

Data list: 3-53652-6 drawing

Featured product: te connectivity - free height connectors for parallel board stacking applications

3D model: 3-53652-6 pdf

Standard packing: 18

Category: connector, interconnection device

Family: Rectangular - board to board connector - array, edge type, sandwich type

Series: free height (FH)

Packaging: pallets

Connector type: plug, housing contact

Number of pins: 440

Spacing: 0.020 "(0.50mm)

Number of rows: 2

Installation type: Surface Mount

Features: plate, guide rail, grounding strip

Contact coating: Gold

Contact coating thickness: 8 µ in (0.20 µ m)

Joint stacking height: 5mm, 8mm

Height on board: 0.293 "(7.45mm)

Other name: 3-53652-6-nda15183
