5-146278-3-row pin te connector original stock

Technology Related / 2022/4/22 14:57:57

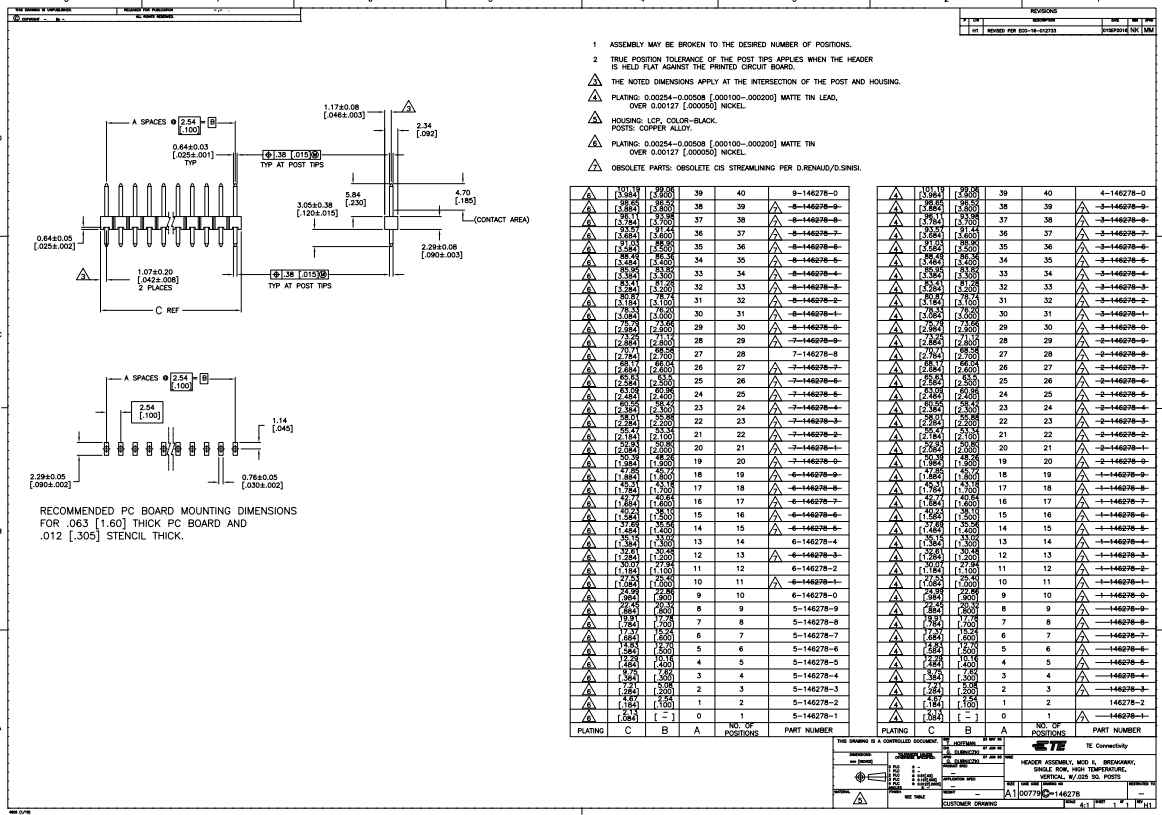

5-146278-3

Specification information:

Manufacturer: te connectivity

Product category: header and shell

RoHS: Yes

Product: headers

Type: breakaway

Number of positions: 3 positions

Pitch: 2.54 mm

Number of rows: 1 row

Installation style:-

Termination type: through hole

Mounting angle: straight

Contact type: pin (male)

Contact plating: Tin

Length of fitting column: 5.84 mm

Length of terminal post: 3.05 mm

Series: AMPMODU mod II

Trade name: AMPMODU

Liquid crystal shell (LCP)

Trademark: te connectivity / Amp

Contact material: phosphor bronze

Flammability class: UL 94 V-0

Line spacing: 2.54 mm

Product type: headers & wire housing

Factory packing quantity: 540

Subcategory: headers & wire housing

Part number alias: 5-146278-3
